FUJI FUSES

Fuji fuses

Fuji electric current limiting Japanese fuses are designed to give protection to power supply, distribution circuits, motor starters, and semiconductors. Fuji fuses are supplied in a variety of voltages: 125 VAC, 500 VAC, 600 VAC, 1000 VAC, and 1500 VAC, and in current ratings from 1-1500 amps.



Some of National Fuse’s top selling Fuji fuses include the following low voltage fuses. Click  on each to view their datasheets:

Fuji electric current-limiting fuses have a high interrupting capacity designed to prevent thermal and mechanical damage from heavy short circuits. Fuji electric fuses have circuit protectors that have a similar function to a molded case circuit breaker. These Japanese Fuji electric fuses can be used for everyday on and off switching with interrupting both overload and short circuits.

Product Image
Catalog #
Description
Price
Fuji AFA60 Fuse Holder
AFA30
30A 690V 1P BLOCK The Fuji AFA30 is a ceramic fuse holder with a base surface connection type.
$20.16
Buy Now
Fuji AFA60 Fuse Holder
AFA60
60A 690V 1POLE BLOCK
$36.96
Buy Now
AHX2905
CONTACT BLOCK
$19.88
Buy Now
Placeholder
AR22E0M-10E3R
PUSHBUTTON SWITCH
$39.20
Buy Now

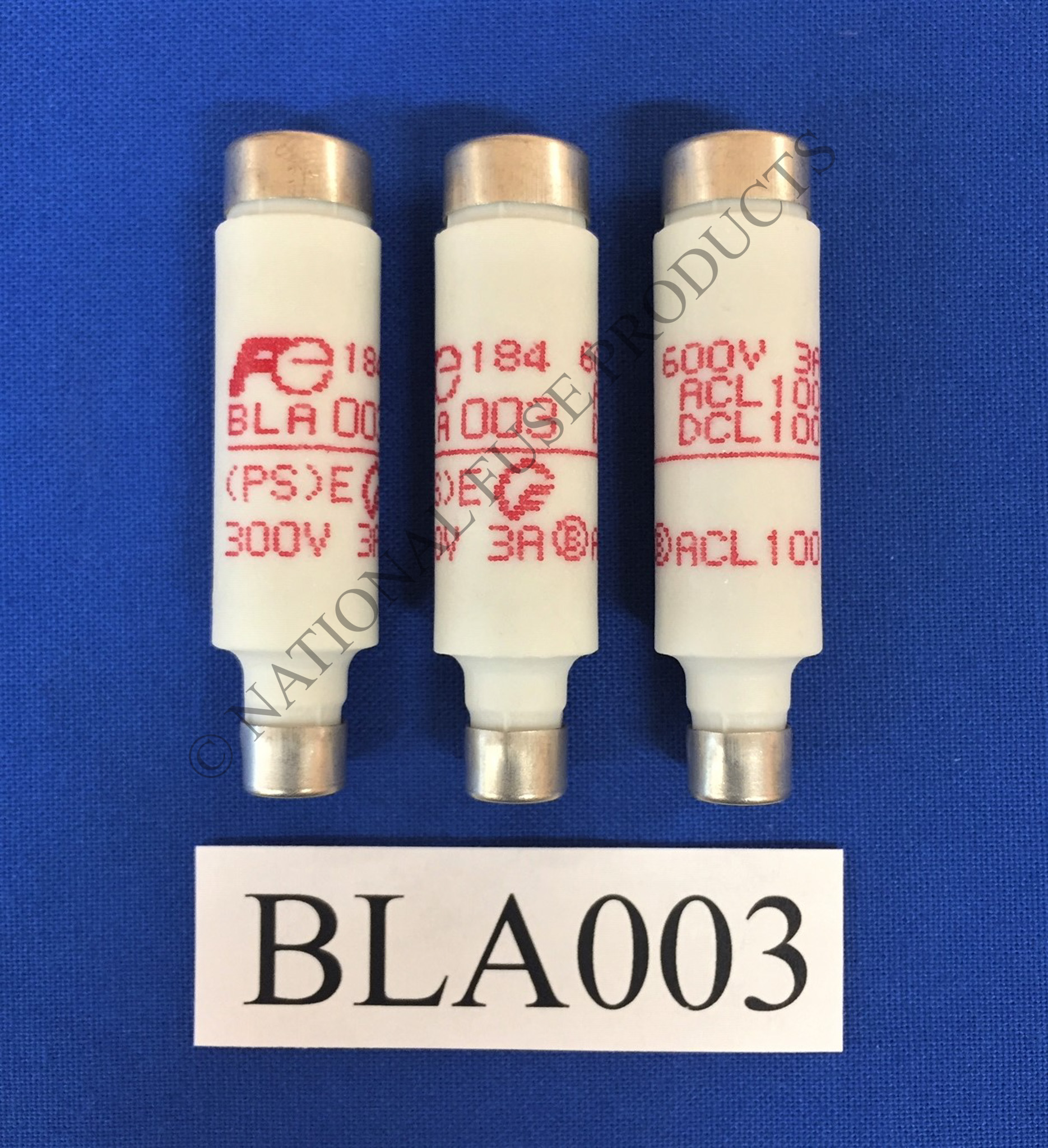

BLA003
3A 600V FUJI FUSE
  • 3.0 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA003 fuse is part of Fuji’s BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA003 fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$7.50
Buy Now
BLA003-D
3A 600V TELECOMM.
  • 3.0 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA003-D fuse is part of Fuji’s BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA003-D is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$5.50
Buy Now

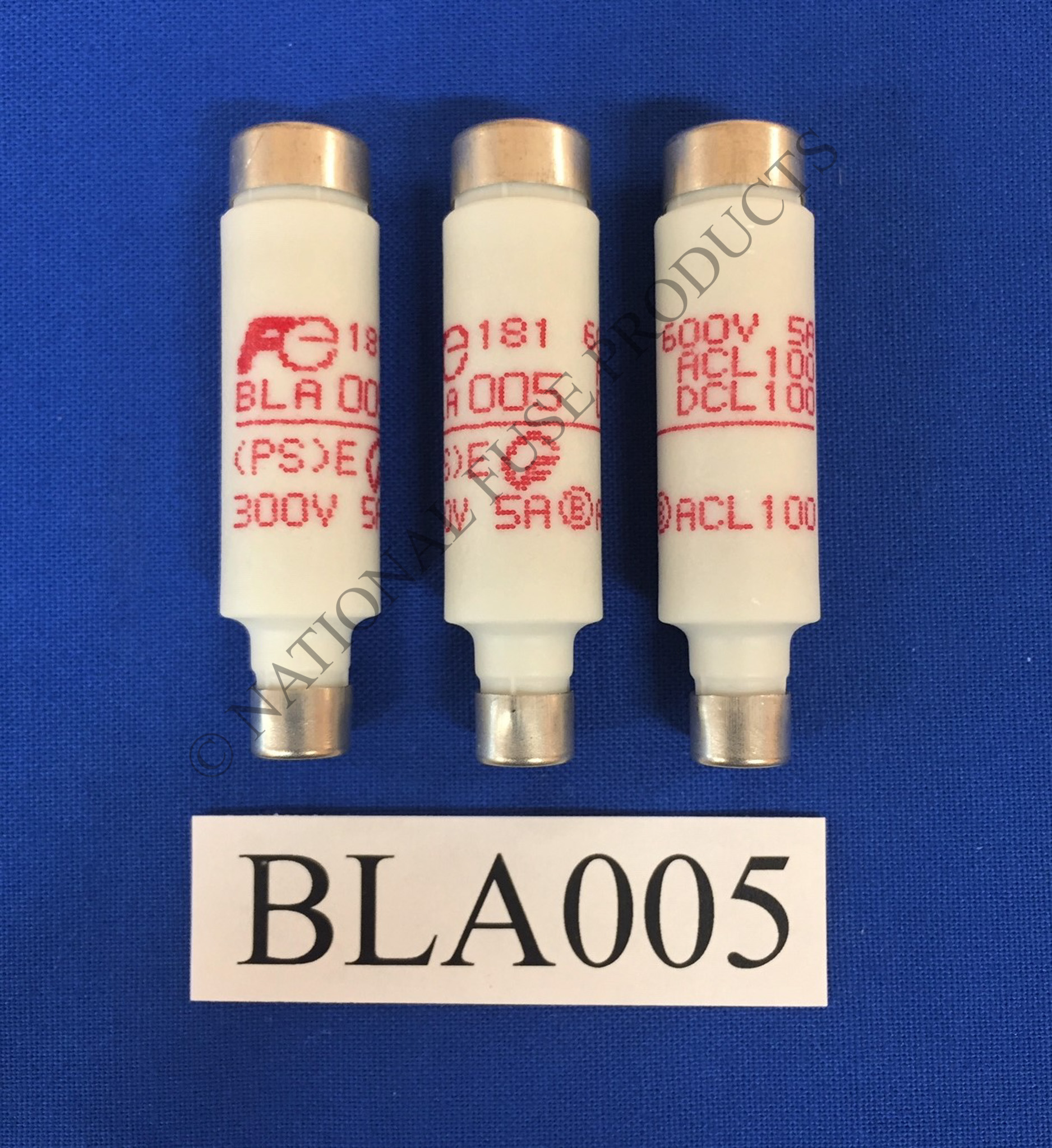

BLA005
5A 600V FUJI FUSE
  • 5.0 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage (5A - brown)
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA005 fuse is part of Fuji’s BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA005 is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$5.50
Buy Now
BLA005-D
5A 600V TELECOMM.
  • 5.0 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA005-D fuse is part of Fuji’s BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA005-D fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$5.50
Buy Now

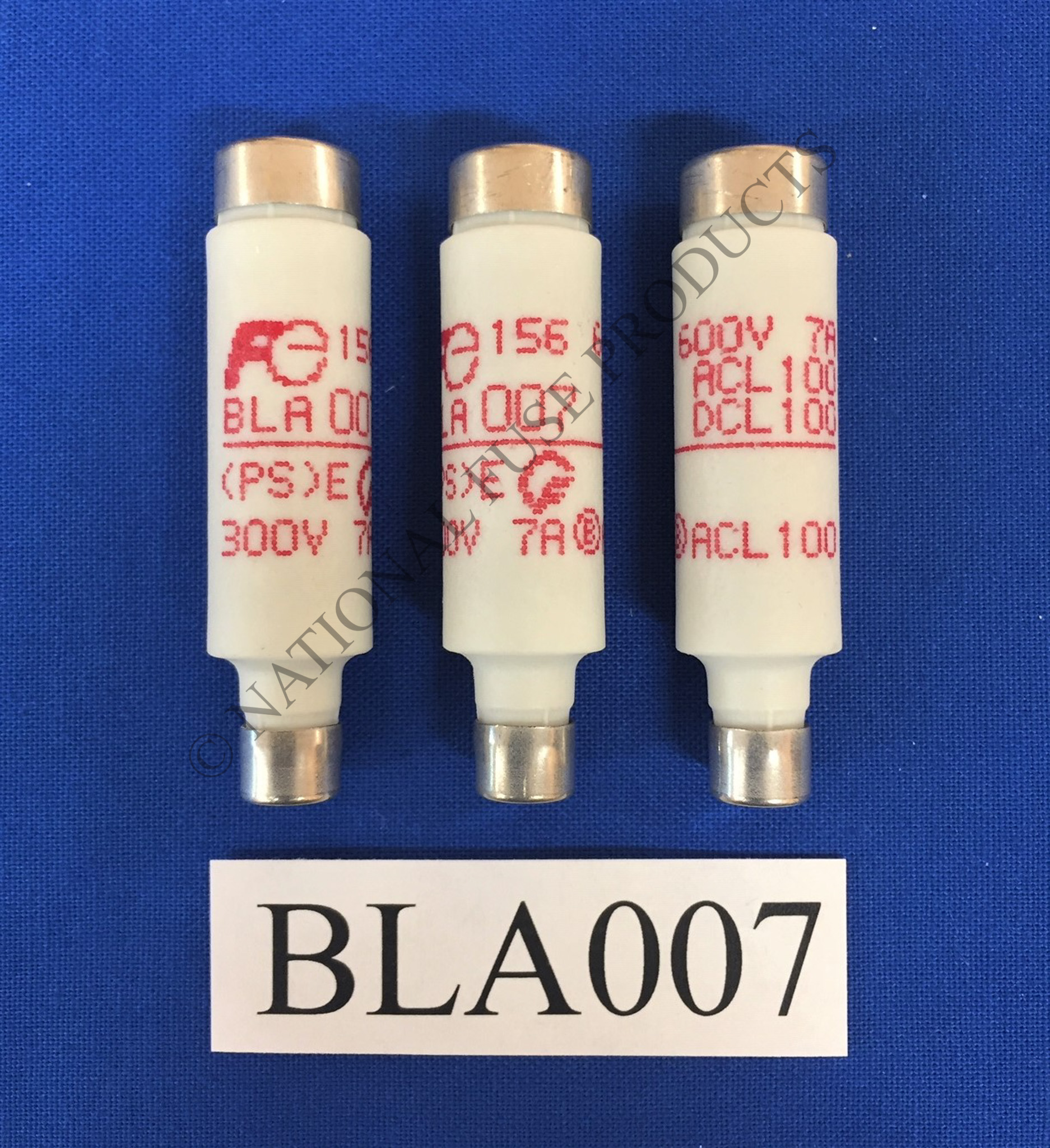

BLA007
7A 600V FUJI FUSE
  • 7.0 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA007 is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA007 is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$7.13
Buy Now
BLA010
10A 600V FUJI FUSE
  • 10 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA010 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA010 is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$5.40
Buy Now

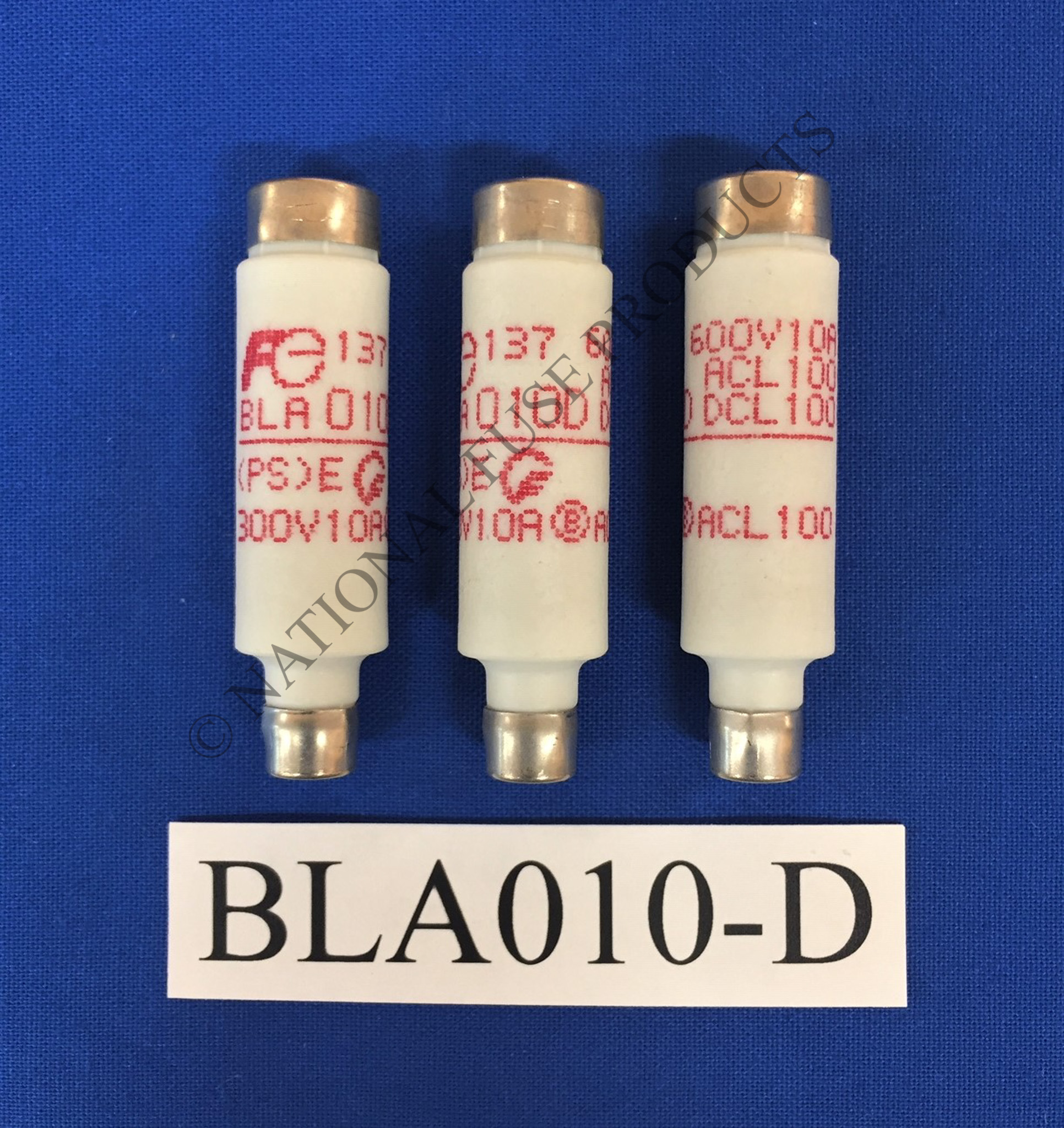

Fuji BLA010-D
BLA010-D
10A 600V TELECOMM.
  • 10 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA010-D is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA010-D is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$5.10
Buy Now
BLA015
15A 600V FUJI FUSE
  • 15 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA015 is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA015 is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$5.40
Buy Now

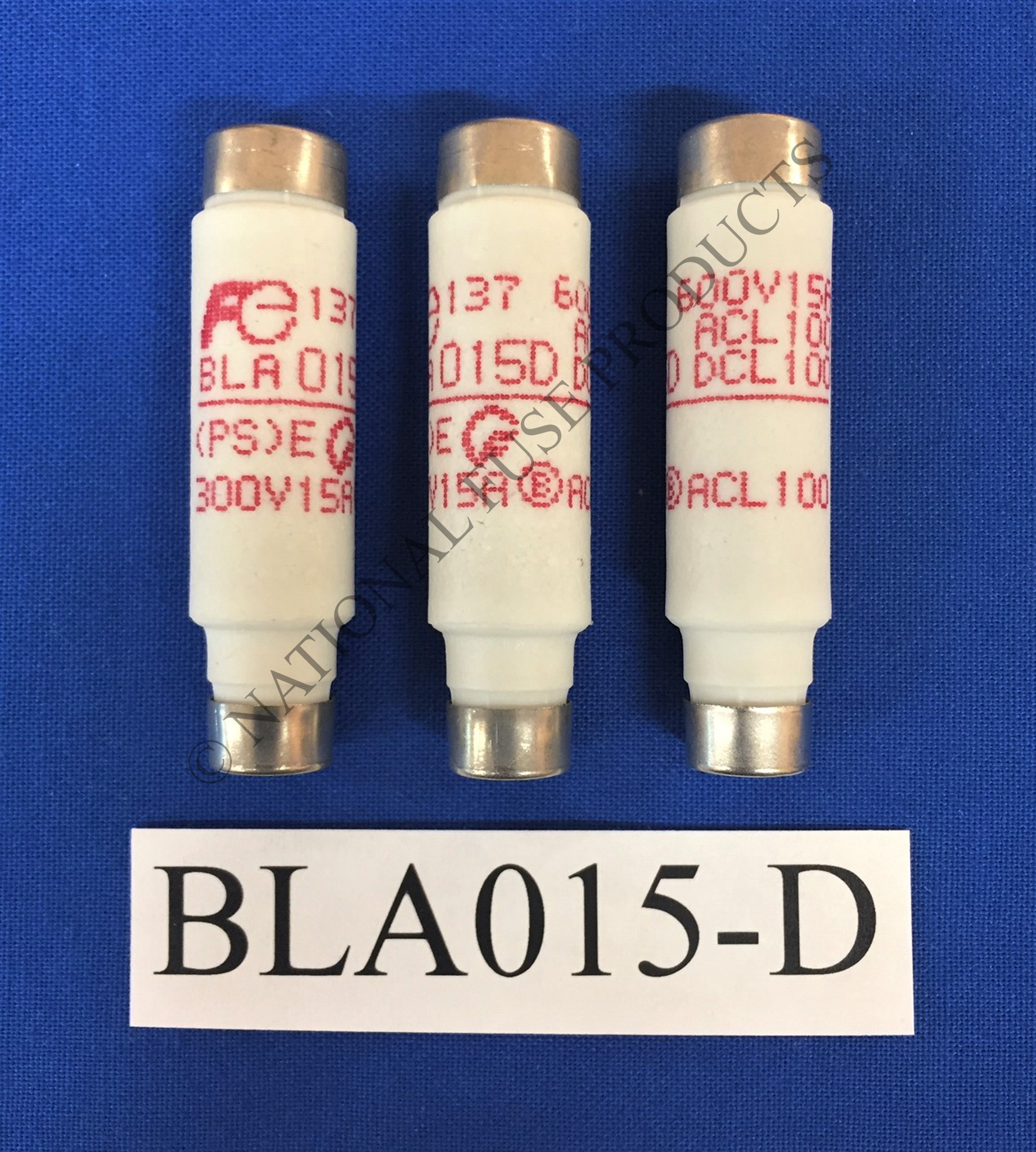

Fuji BLA015-D
BLA015-D
15A TELECOMMUNICATION
  • 15 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA015-D fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA015-D is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$5.50
Buy Now

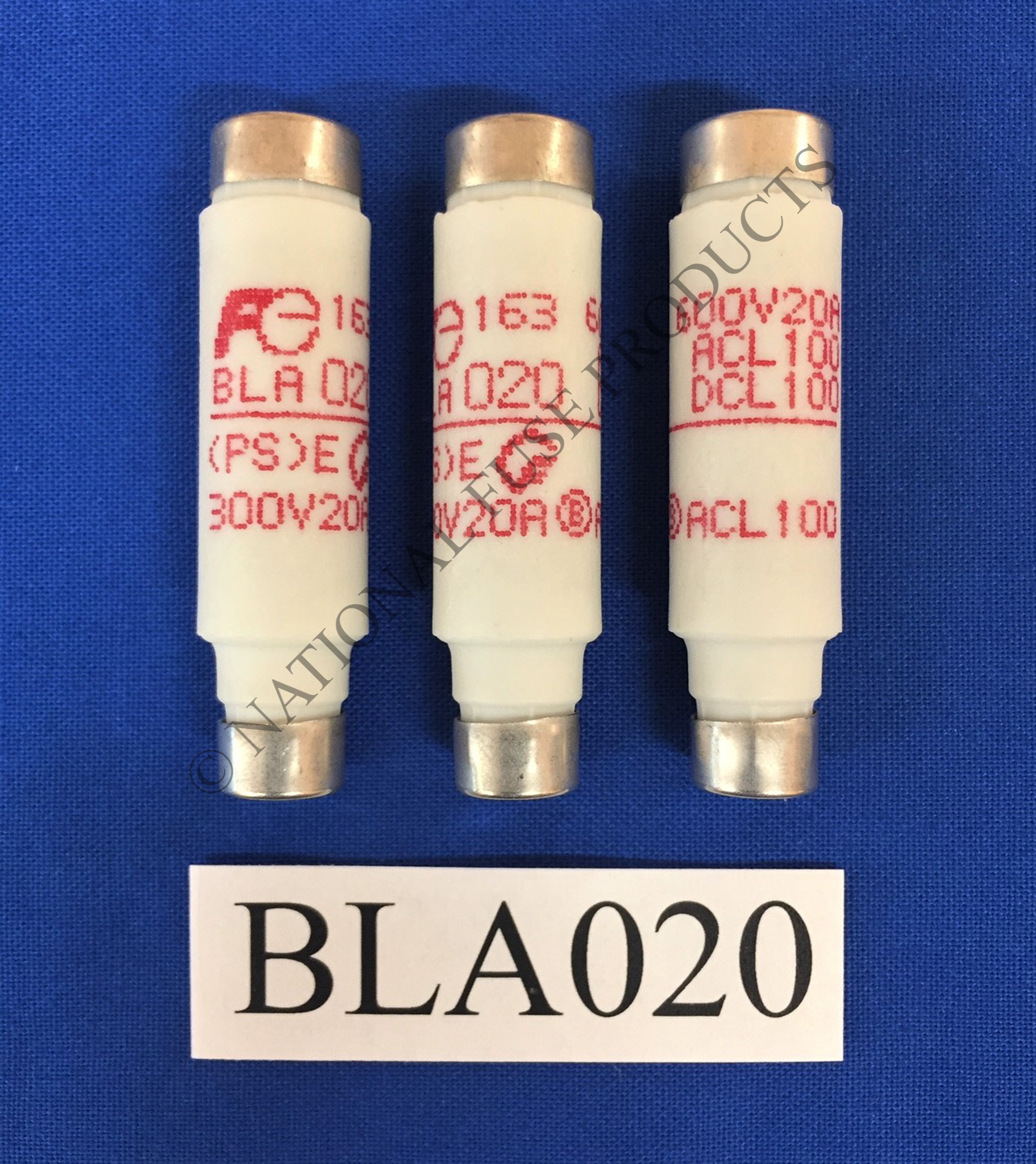

BLA020
20A 600V FUJI FUSE
  • 20 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA020 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA020 is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$8.13
Buy Now
BLA020-D
20A TELECOMMUNICATION
  • 20 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA020-D fuse is part of the BLA series of Fuji Japanese fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA020-D is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$7.75
Buy Now

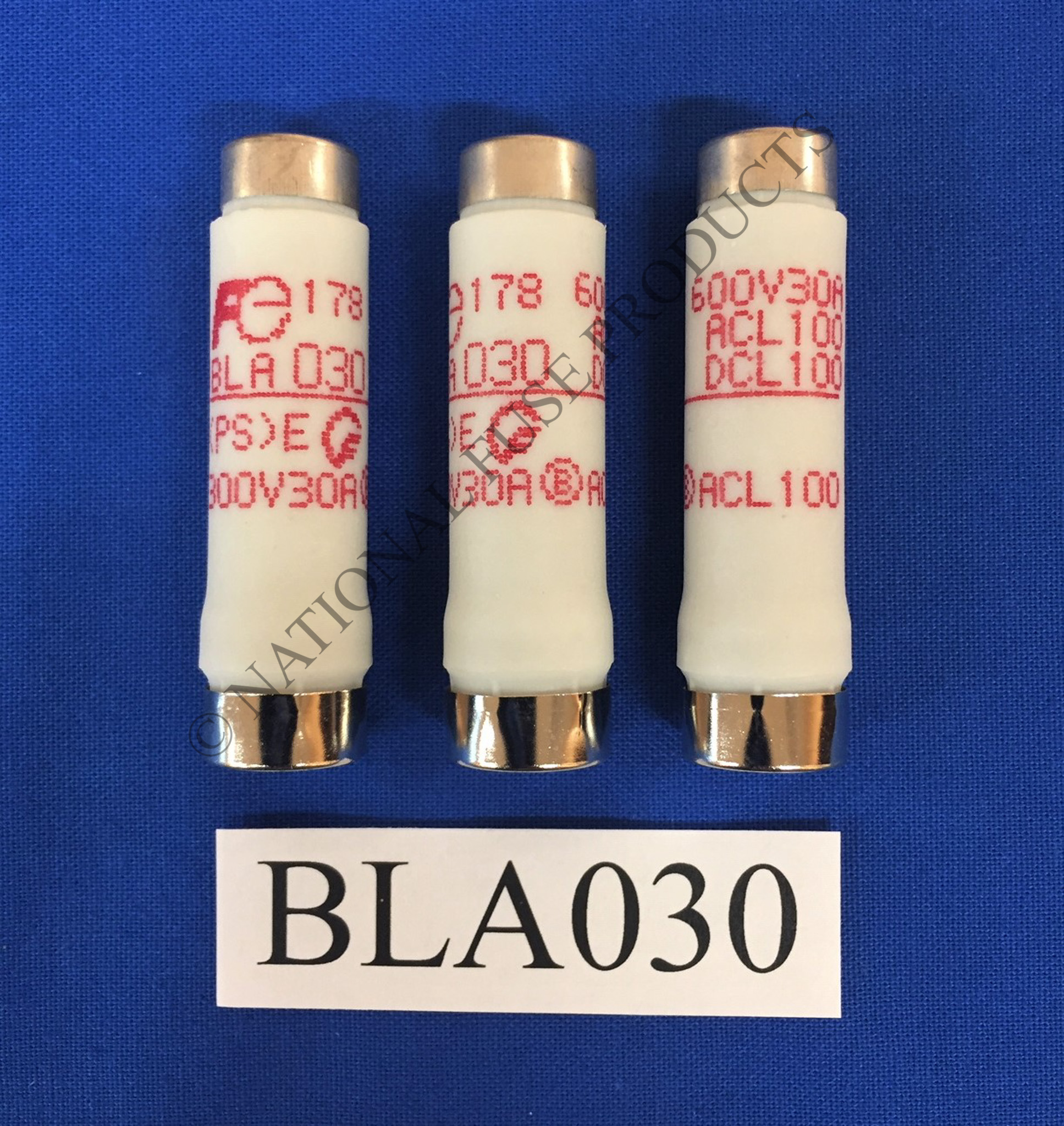

BLA030
30A 600V FUJI FUSE
  • 30 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA030 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA030 fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$11.25
Buy Now

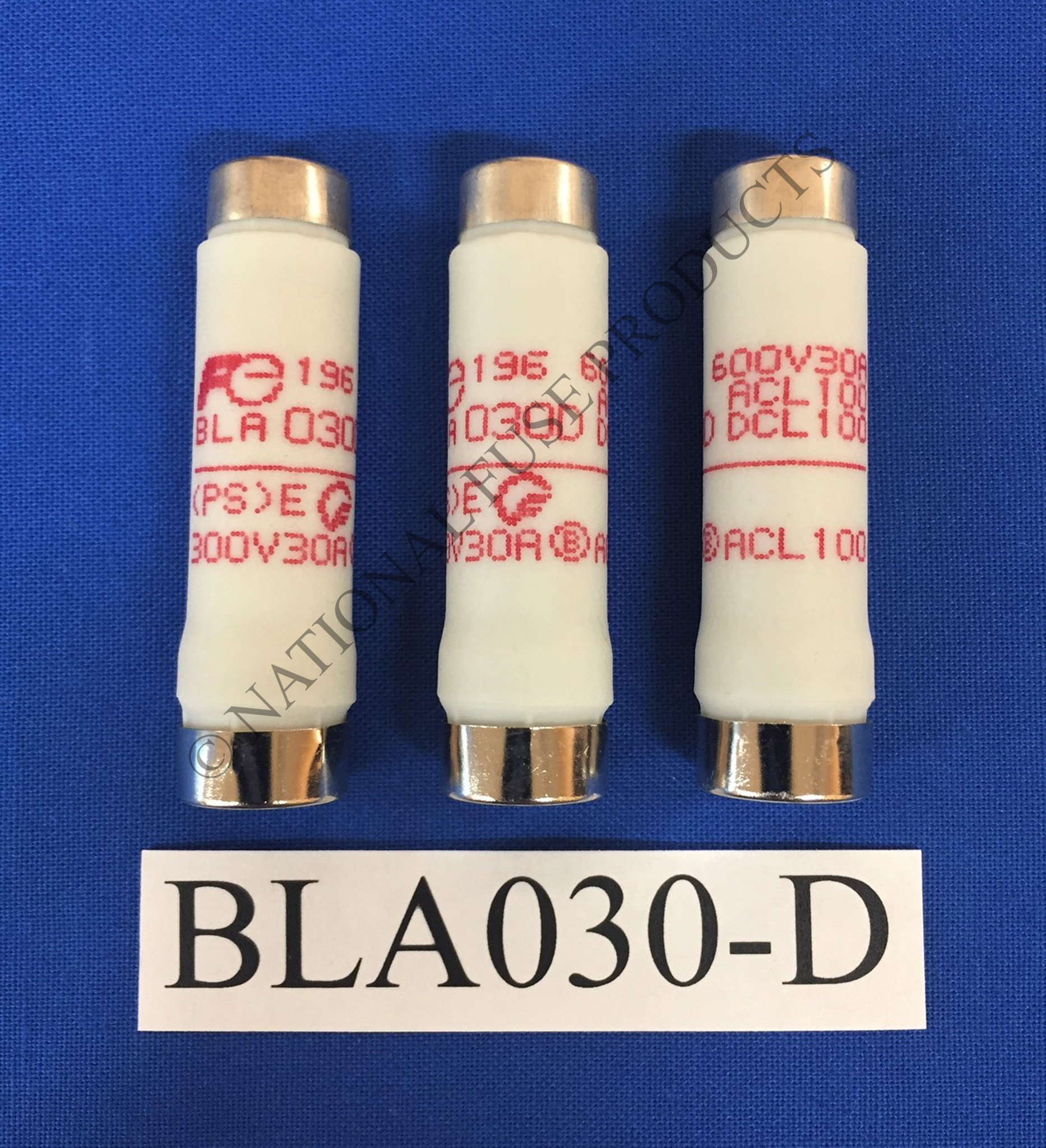

BLA030-D
30A TELECOMMUNICATION
  • 30 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight
  The Fuji BLA030-D fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA030-D fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$9.10
Buy Now
BLA040
40A 600V FUJI FUSE
  • 40 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x 1.06” width
  • 1.66 oz. in weight
  The Fuji BLA040 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA040 fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$11.80
Buy Now
BLA060
60A 600V FUJI FUSE
  • 60 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x 1.06” width
  • 2.19 oz. in weight
  The Fuji BLA060 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA060 fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$20.13
Buy Now
BLA075
75A 600V FUJI FUSE
  • 75 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 2.48” height x 1.33” width
  • 4.23 oz. in weight
  The Fuji BLA075 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA075 fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.   Fuji BLA Series Datasheet
$26.15
Buy Now
