Search National Fuse Products

QUANTITY DISCOUNTS

1 - 9 10+

$26.15 each

$ 23.54 each

Price: $26.15

BLA075

Brand / manufacturer: FUJI FUSES

Amperage Rating: 75

Voltage: 600

Department: 12

Series: BLA

Catalog Number: BLA075

Catalog / class: CURRENT LIMITING

Speed: TIME-DELAY

Catalog Number: BLA075

Categories: , , ,

*Prices Subject to Change

Description

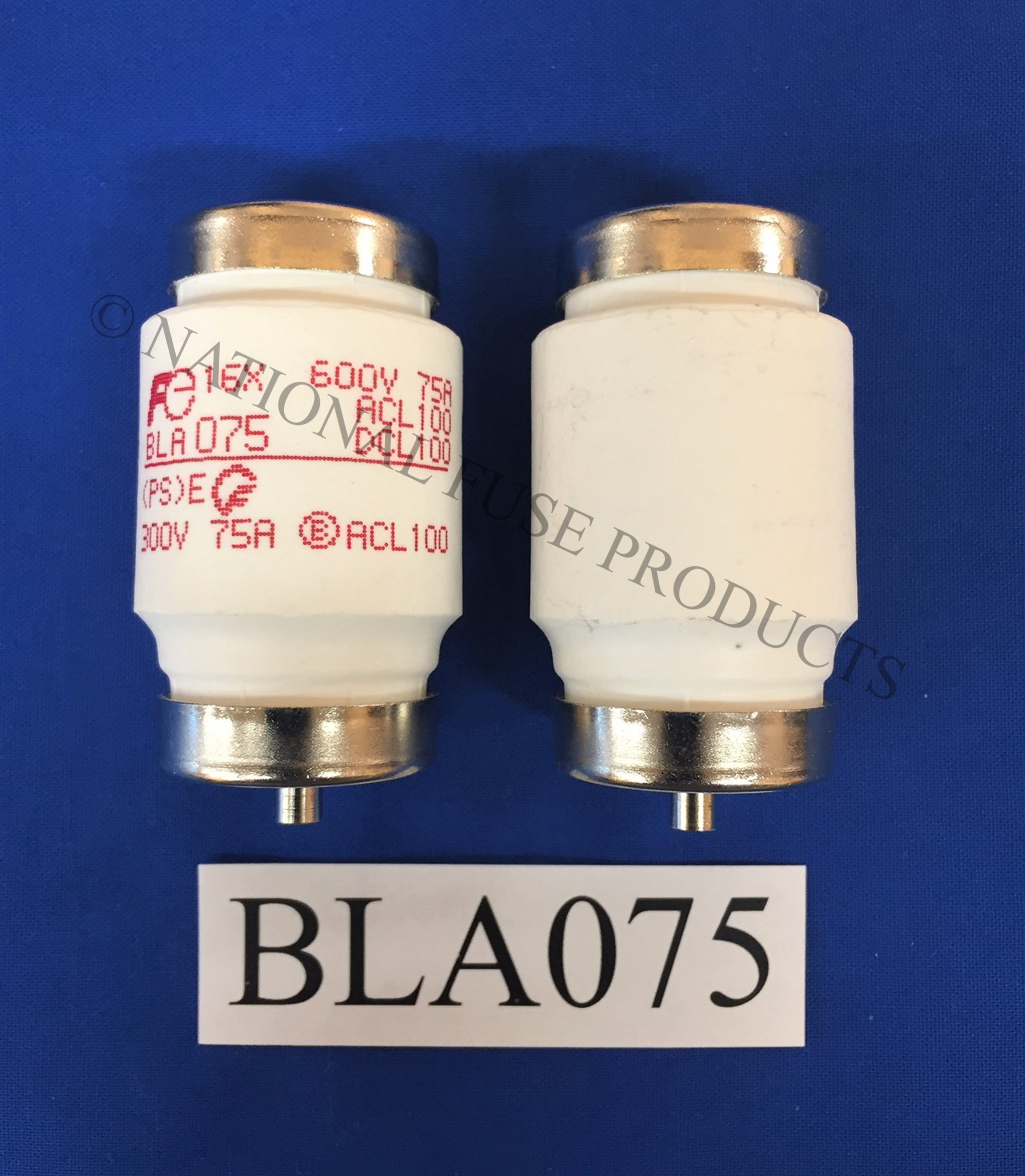

75A 600V FUJI FUSE



  • 75 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .51” width x .51” depth
  • .423 oz. in weight



The Fuji BLA075 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA075 fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.



Fuji BLA Series Datasheet
