$31.38 per piece

BLA100

Brand / Manufacturer: FUJI FUSES

Amperage Rating: 100

Voltage: 600

Department: 12

Series: BLA

Catalog Number: BLA100

Catalog / Class: CURRENT LIMITING

Speed: TIME-DELAY

SKU: BLA100

Categories: , , ,

*Prices Subject to Change

Description

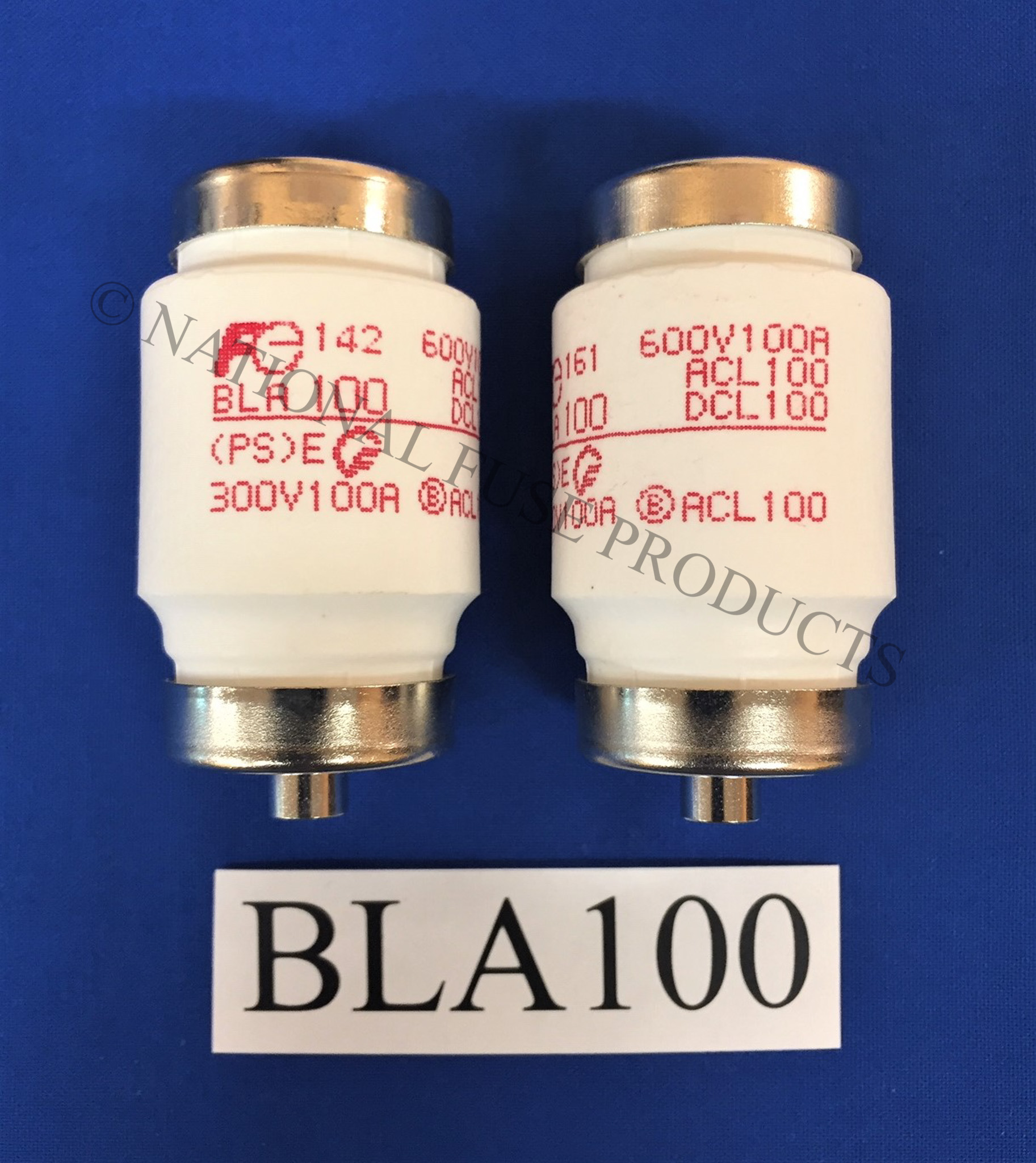

100A 600V FUJI FUSE



  • 100 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 2.48” height x 1.33” width
  • 4.23 oz. in weight



The Fuji BLA100 fuse is part of the Fuji BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA100 fuse is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.



Fuji BLA Series Datasheet
