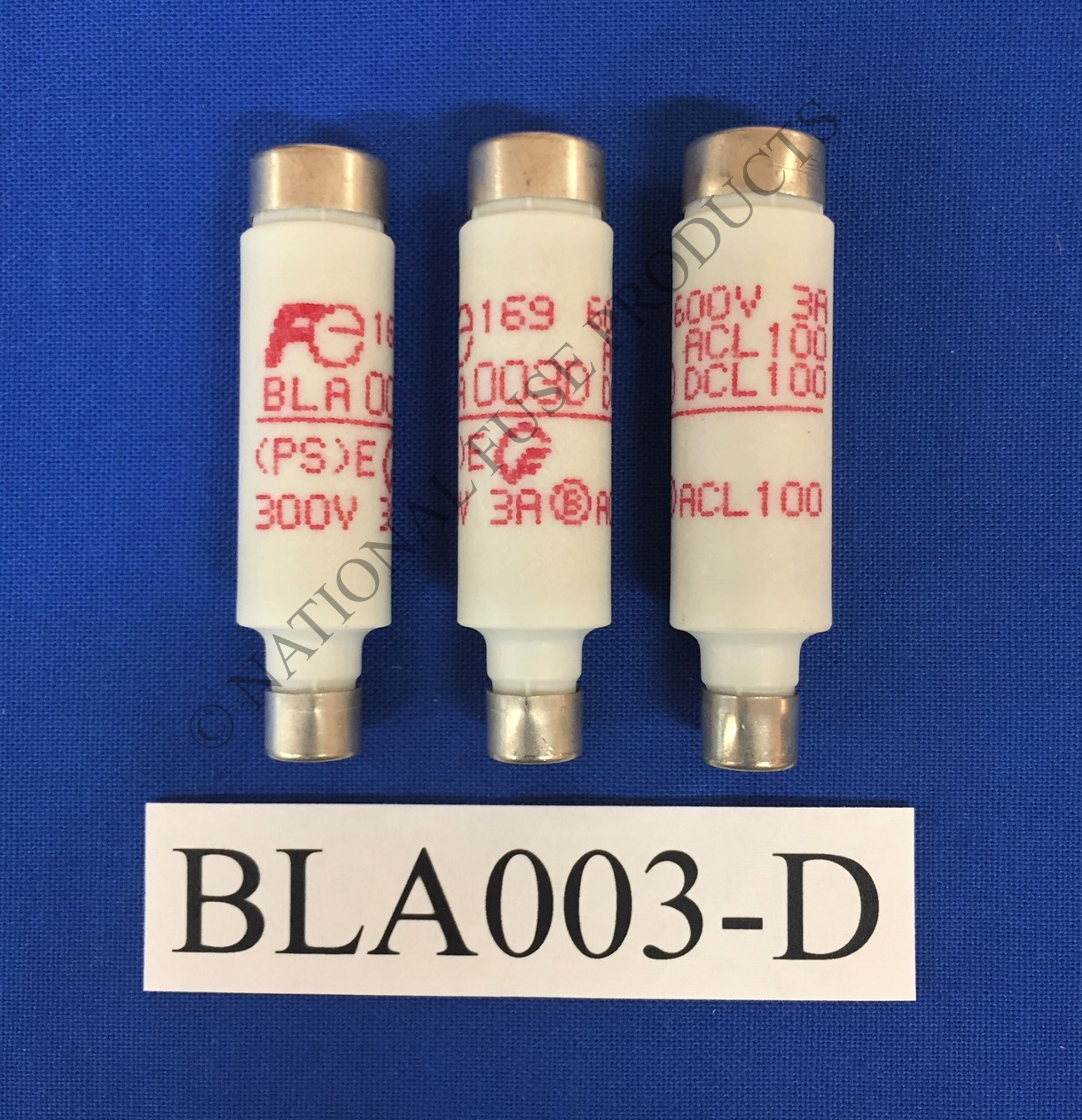

BLA003-D

QUANTITY DISCOUNTS

1 - 9 10+

$6.75 each

$ 6.08 each

Price: $6.75

Brand / manufacturer: FUJI FUSES

Amperage Rating: 3.0

Voltage: 600

Department: 12

Series: BLA

Catalog Number: BLA003-D

Catalog / class: TELECOMMUNICATION

Speed: TIME-DELAY

SKU: BLA003-D

Categories: , , , ,

*Prices Subject to Change

Description

3A 600V TELECOMM.



  • 3.0 Amps
  • 600 Volts AC/DC
  • Current limiting
  • Bottle style
  • Built-in trip indicator
  • Tip color indicates amperage
  • Open fuse indication window
  • Not RoHS compliant
  • Interrupt rating 100kA @ 600V
  • 1.97” height x .511” width
  • .423 oz. in weight



The Fuji BLA003-D fuse is part of Fuji’s BLA series of fuses. They have an excellent current‑limiting performance with an interrupting capacity as high as 100kA at 600 volts AC/DC. The Fuji BLA003-D is suitable for power circuit applications including general power cubicles, distribution equipment, motor starters, load centers and control centers.



Fuji BLA Series Datasheet
