Description
5-CH INTRINSICALLY-SAFE SWITCH
Description

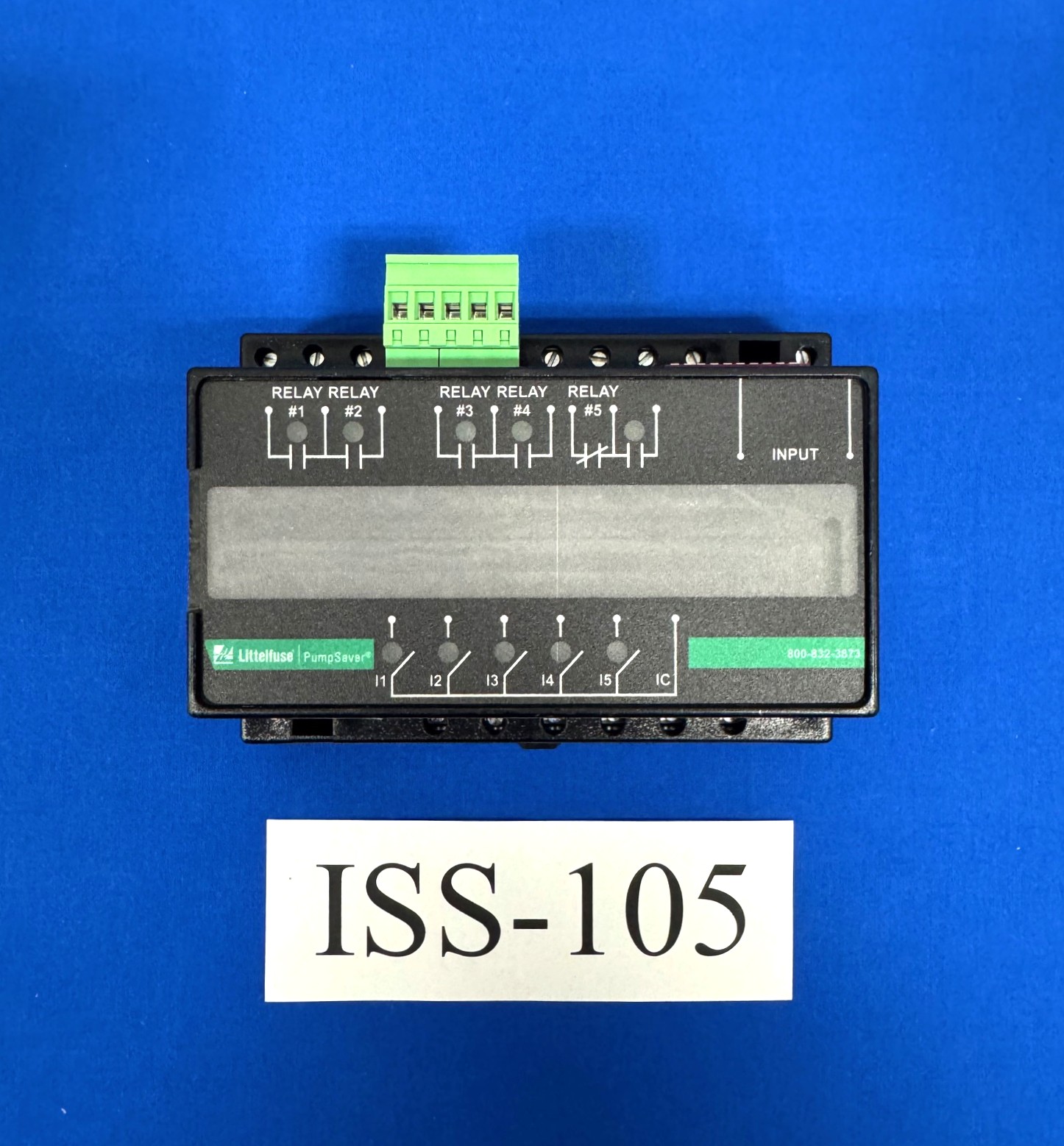

The ISS-105 is a “smart” five-channel intrinsically safe relay and
pump controller. The ISS-105 can be configured for pump-up or
pump-down applications or as a five-channel relay covering a
wide variety of applications.
The ISS-105 has a long list of features that are needed for
multiple pump applications and can indicate low, high and
out-of-sequence alarms. If an out-of-sequence alarm occurs,
the skipped pump(s) will be started as intended.
The Model ISS-105 can be set-up to do non-alternating
control, alternating control and alternating control with one
non-alternating pump. The non-alternating pump is intended for
use with an emergency or jockey pump. The ISS-105 can start an
emergency pump once every 50 cycles to keep it working freely.
Using the built-in DIP switches, individual pumps can be disabled
when taken out of service for repair or maintenance.
Features & Benefits
JJ 5 intrinsically-safe input channels meeting UL913 Sixth Edition
JJ 4 normally open output relays and 1 SPDT output relay
JJ Field selectable pump control options
JJ Monitors float sequencing and sends signal to alarm if
out-of-sequence condition occurs
JJ High and/or low alarm options depending on the number of
pumps and settings
JJ Output contacts for audible alarm
JJ Meets IEC EMC standards for Electrical Fast Transients (EFT),
Electrostatic Discharge (ESD) and Radio Frequency Immunity (RFI)
JJ DIN rail or surface mountable allows flexibility in
panel installation
JJ User-selectable alternator/non-alternator option
JJ Non-alternating pump option for emergency or
jockey applications
JJ Pump disable switches make it easy to disable individual
pumps when they are out for service or repair
JJ Adjustable lag pump delay for all pumping modes
JJ Adjustable delay-on-make/break timer in five-channel
relay mode
JJ Finger-safe terminals meet IEC 61000 safety requirements
