$2.71 per piece

X212540

Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)

Amperage Rating: 25

Voltage: 500

Department: 16

Series: D27/E27

Catalog Number: X212540

Catalog / Class: GG/GL

Speed: Time-Delay

SKU: X212540

Categories: , , , , , , , ,

*Prices Subject to Change

Description

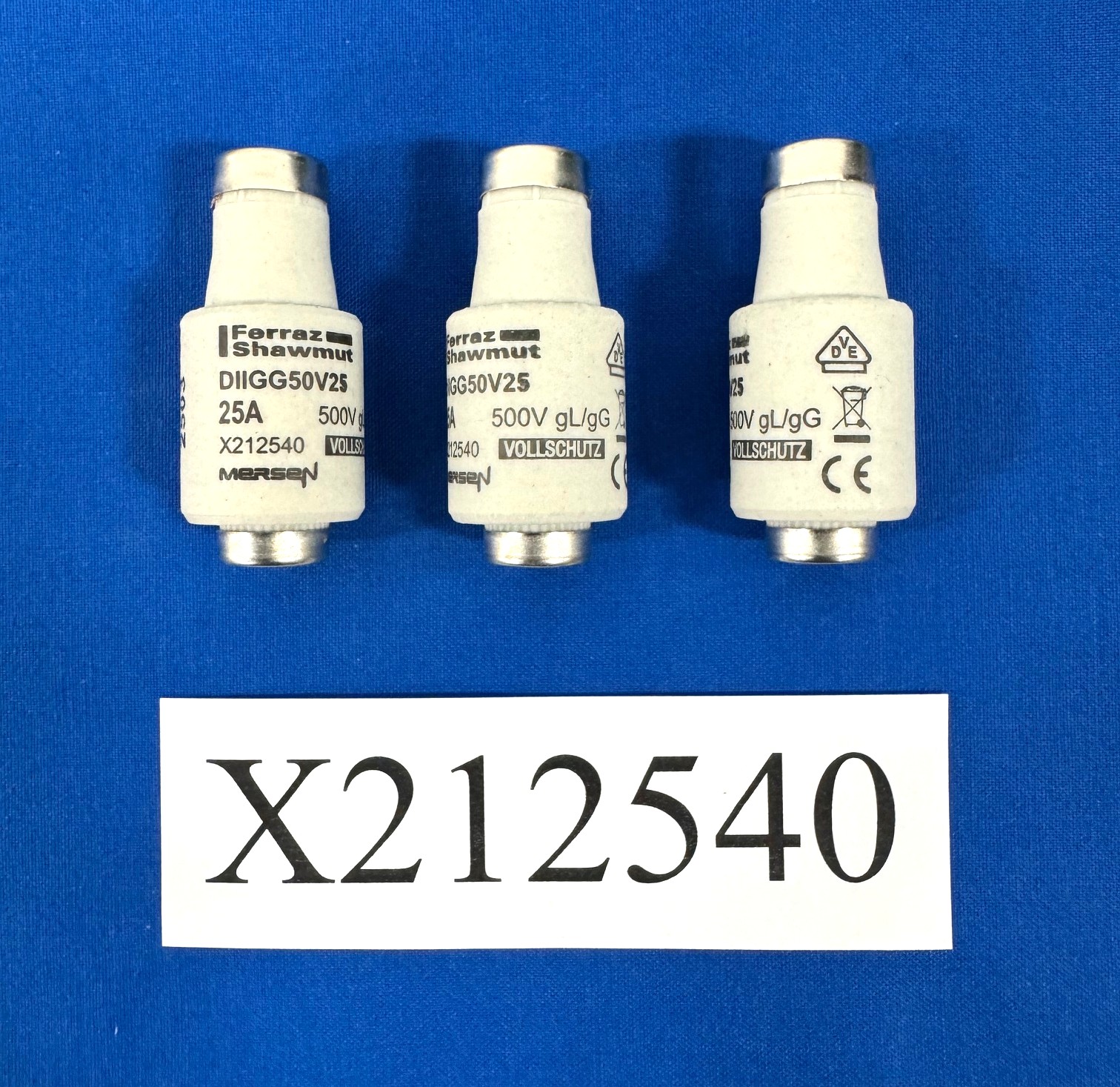

25A 500V DII GL-GG



DIN D Fuse-link gG Size DII 500VAC 500VDC 25A Color code Yellow

The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.



Key features & benefits

  • Insulated body suitable for high mechanical and thermal impacts
  • Top and bottom contacts made of nickel plated copper alloy
  • Safe cut-off short circuits and over currents due to special design of fuse element
  • Clear indication of operation condition due to coloured indicator on top contact
  • Low power dissipation
  • Optimized size
  • Resistant to aging
  • Free of lead, cadmium, mercury, chrome 6 (rohs conformity)

Applications

  • House incoming units
  • Meter distribution units
  • Distribution cabinets
  • Installation cabinets
  • Fuse boxes
