Time-Delay
Showing 1–16 of 237 results
-
1002904.100
100A 400V 5X30 FAST 100 Amps 400 Volts Ceramic, industrial fuse DO-type; DO3 size VDE certified 4.2 kg/100 in weight 1.70″ length and .90″ depth The SIBA 1002904.100 fuse is a class gG (general purpose, formerly gL). A gG class fuse will typically blow within 2–5 seconds at five times the rated current, and… Read more »
$28.00 Add to cart -

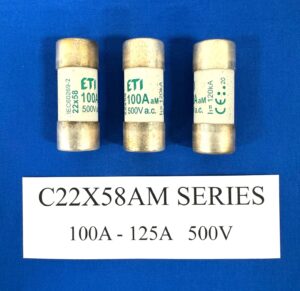

100C22X58AM
100A 500V AM 22X58 100 Amps 500 Volts Meets EC/EN 60269-1 and IEC/EN 60269-2 standards RoHS Compliant Rated breaking capacity 80kA @690V; 120kA @500V/400V 22 x 58 mm The Altech 100C22X58AM (also known as the DF Electric 442000 fuse) is a time-delay cylindrical fuse links aM class are intended for short circuit… Read more »
$5.45 Add to cart -
100C22X58AM/I
100A 660V AM 22X58/I 100 Amps 660 Volts With indicator Meets EC/EN 60269-1 and IEC/EN 60269-2 standards RoHS Compliant Rated breaking capacity 80kA @690V; 120kA @500V/400V 22 x 58 mm The Altech 100C22X58AM/I fuse is a time-delay cylindrical fuse links aM class intended for short circuit protection in motors, transformer and other… Read more »
$7.12 Add to cart -
100NHOOAM-6
100A 690V NHOO AM 100 Amps 690 Volts Class aM Ceramic casing Breaking capacity 120kA (AC) RoHS compliant Time-delay The Altech 100NH00AM-6 (also known as ETI 004181469) fuse is part of the Altech NH00 series. NH00 fuses (class aM) are typically used for fast acting short circuit protection, but slow acting overload protection. NH… Read more »
$16.95 Add to cart -

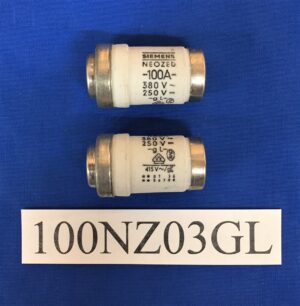

100NZ03GL
100A 380V D03 GL 100 Amps 380 Volts Class gG/gL Slow blow; time delay DIN rail mount; panel mount The Altech 100NZ03GL fuse is a Neozed fuse type and part of the Altech D03 series. They are typically used to protect cable, conductors, and equipment from damage due to overload and short circuits. Fuse… Read more »
$5.08 Add to cart -
10C10X38AM
10A 500V AM 10X38 10 Amps 500 Volts Class AM 10×38 mm Breaking capacity 100kA ROHS compliant Slow blow; time delay The Altech 10C10X38AM fuse is a cylinder fuse typically used in industrial applications to protect electrical devices such as motors, drives, etc. Cylinder fuses have metal caps at both ends, and a porcelain fuse… Read more »
$2.71 Add to cart -
10D16SB
10A 500V ND/E16 10 Amps 500 Volts Diazed type Slow blow Glass body ND (E16) size Threaded stud termination The Altech 10D16SB fuse is a diazed fuse type, commonly called “bottle fuses.” They are available in five sizes and are typically used to protect equipment. Each size fuse body has a different diameter to… Read more »
$3.39 Add to cart -
10D27SB
10A 500V D11/E27 GG 10 Amps 500 Volts Class gG Ceramic casing Slow blow DIN rail mount; panel mount The Altech 10D27SB fuse is a diazed fuse, commonly known as a “bottle” fuse. It is part of the Altech D11/E27 series. The 10D27SB is a slow blow fuse typically used to protect cable, equipment,… Read more »
$2.71 Add to cart -
10NZ01GL
10A 400V D01 GL 10 Amps 400 Volts Class gG/gL Ceramic casing Slow blow; time delay DIN rail mount; panel mount The Altech 10NZ01GL fuse is part of the Altech Neozed series. They are typically used to protect cable, conductors, and equipment from damage due to overload and short circuits. Neozed fuses are more… Read more »
$3.39 Add to cart -
125C22X58AM
125A 500V 22X58AM 125 Amps 500 Volts Class AM Time delay Without indicator ROHS compliant 22x58mm The Altech 125C22X58AM is a cylinder fuse typically used in industrial applications for power to protect motors. Cylinder fuses have metal caps at both ends, and a porcelain fuse body. They offer fast acting short circuit protection, but… Read more »
$26.83 Add to cart -
125NH1AM-6
125A 690V AM NH1 125 Amps 690 Volts Class aM Ceramic casing Time delay The Altech 125NH1AM-6 fuse is part of the Altech NH1 series. NH1 fuses (class aM) are typically used for fast acting short circuit protection, but slow acting overload protection. NH fuses have knife blades at both ends, which mount into… Read more »
$38.12 Add to cart -
125NHOOAM-6
125A 690V AM NHOO 125 Amps 690 Volts Class aM Ceramic casing Time-delay The Altech 125NHOOAM-6 fuse is part of the Altech NH00 series. NH00 fuses (class aM) offers fast acting short circuit protection, but slow acting overload protection. NH00 fuses have knife blades at both ends, which mount into fuse bases. NH00 fuses… Read more »
$15.80 Add to cart -
12C10X38AM
12A 500V AM 10X38 12 Amps 500 Volts Class aM Breaking capacity 100kA ROHS compliant Slow blow; time delay The Altech 12C10X38AM is a cylinder fuse typically used in industrial applications to protect devices such as motors and drives. It provides fast acting short circuit protection, but slow acting overload protection. Cylinder fuses have metal… Read more »
$2.71 Add to cart -
12C14X51AM
12A 690V AM 14X51 12 Amps 690 Volts Class aM Breaking capacity 100kA ROHS compliant Slow blow; time delay The Altech 12C14X51AM is a cylinder fuse typically used in industrial applications to protect devices such as motors and drives. It provides fast acting short circuit protection, but slow acting overload protection. Cylinder fuses have metal… Read more »
$2.90 Add to cart -
12C22X58AM
12A 660V AM 22X58 12 Amps 500 Volts Class aM Breaking capacity 80kA ROHS compliant Slow blow; time delay The Altech 12C22X58AM fuses is a cylinder fuse typically used in industrial applications to protect devices such as motors and drives. It provides fast acting short circuit protection, but slow acting overload protection. Cylinder fuses… Read more »
$16.59 Add to cart -
13004
4A 500V AM 10X38mm Cartridge fuse 10 x 38 mm – type aM – without indicator – 4 A Rupture capacity 100000 A – Rated voltage 500V~ Dimension 10 x 38 mm. Ceramic body and silver – plated contacts Conform to IEC/EN 60269-1 and 2, NFC 60-200.
$2.39 Add to cart
