$8.13 per piece


Brand / Manufacturer: ALTECH

Amperage Rating: 10

Voltage: 500

Department: 30

Series: E27/D11

Catalog Number: 10D27SC

Catalog / Class: Semiconductor

Speed: Very Fast Acting

SKU: 10D27SC

Categories: , , , , , ,

*Prices Subject to Change

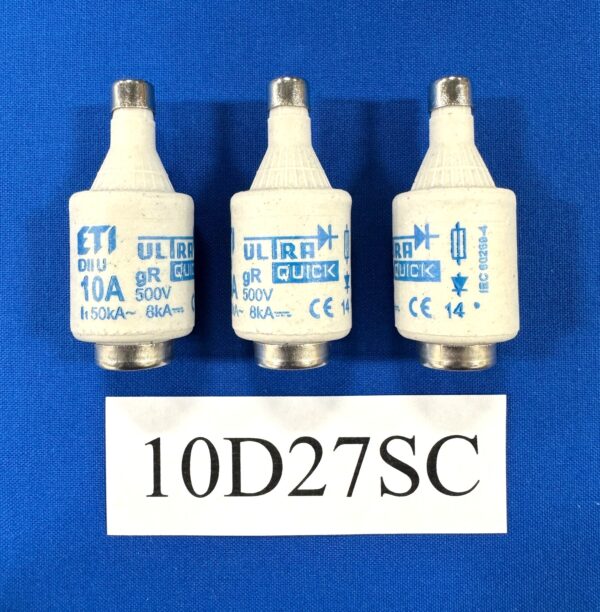

10A 500V D11/E27 GR

  • 10 Amps
  • 500 Volts
  • Class gR
  • Ceramic casing
  • Fast blow
  • DIN rail mount; panel mount

The Altech 10D16SC fuse is a diazed fuse, commonly known as a “bottle” fuse. It is part of the Altech D11/E27 series. The 10D16SC is a fast blow fuse typically used to protect equipment like semiconductors, diodes, SCRs, etc.
Fuse accessories are sized to match. Each size fuse body has a different diameter to fit only into the appropriate screw cap and fuse base. Also, the fuse tips have different diameters, depending on their current rating. The diameter of the tip matches the diameter of the hole in the adapter ring to ensure that no fuse with a higher rating than intended for the circuit can be installed. This prevents damage to the circuit or equipment the fuse protects. Additionally, fuses and adapter rings are color coded to avoid mismatching.
Altech Diazed Fuse Datasheet
