Indicator
Showing 1–16 of 278 results
-
004723235
200A 800V gS NH1 SEMICONDUCTOR FUSE NH1 gS 200A/800V Class name: Fuse link efuse:1 Rated current (A):200 Type:NH Standards:IEC 60269-4 Size:NH1 Characteristics: gS Rated AC voltage (V):800 Indicator:Top fuse status indicator Breaking capacity AC (kA):120 Power dissipation (W):19 Operating joule integral (A2s):145.000
$250.00 Add to cart -
1002807.25
25A 440VAC D02 25 Amps 440 Volts AC Very fast acting D-type; D02 size Rated breaking capacity 100 kA The SIBA 1002807.25 fuse is a very fast acting, ceramic industrial fuse. The 1002807.25 is a gR class fuse which provides full-range breaking capacity (overload and short-circuit protection) to safeguard semiconductors. SIBA… Read more »
$16.75 Add to cart -
100C22X58SC/I
100A 660V 22X58 GR 100 Amps 660 Volts Conforms to standards: CEI 32-1, CEI 32-7, IEC 60269-1, IEC 60269-4 RoHS Compliant CH standard aR series and CH series with striker Steatite body with silver plated contacts Rated current from 20A to 100A; rated voltage: 690V AC Breaking capacity 200kA Very fast acting 22 x… Read more »
$53.78 Add to cart -
100NHOOAR-6
100A 690V NHOO AR 100 Amps 690 Volts Class aR Ceramic casing RoHS compliant Fast acting The Altech 100NH00AR-6 fuse is part of the Altech NH00 series. NH00 fuses (class aR) are typically used for partial range, short circuit protection for devices such as diodes, SCRs, etc. NH fuses have knife blades at both… Read more »
$44.05 Add to cart -
10C10X38AM/I
10A 500V GL 10X38 ID 10 Amps 500 Volts Class aM With indicator RoHS compliant Fast acting 10x38mm The Altech 10C10X38AM/I fuse is a cylinder fuse typically used in industrial applications to protect electrical devices such as motors, drives, etc. Cylinder fuses have metal caps at both ends, and a porcelain fuse body. … Read more »
$2.15 Add to cart -
10C14X51GL/I
10A 690V 14X51 GL W/I 10 Amps 690 Volts Class gL With indicator ROHS compliant Fast acting The Altech 10C14X51GL/I is a cylinder fuse typically used in industrial applications to protect electrical devices such as motors, drives, etc. Cylinder fuses have metal caps at both ends, and a porcelain fuse body. Altech Cylinder… Read more »
$3.39 Add to cart -
125NHOOAM-6
125A 690V AM NHOO 125 Amps 690 Volts Class aM Ceramic casing Time-delay The Altech 125NHOOAM-6 fuse is part of the Altech NH00 series. NH00 fuses (class aM) offers fast acting short circuit protection, but slow acting overload protection. NH00 fuses have knife blades at both ends, which mount into fuse bases. NH00 fuses… Read more »
$15.80 Add to cart -
16C14X51AM/I
16A 500V 14X51 AM/I
$3.56 Add to cart -
16C14X51SC/I
16A 660V GR 14X51 IN
$35.83 Add to cart -
16C22X58AM/I
16A 660V 22X58 AM INDICATOR
$31.61 Add to cart -
16C22X58GL/I
16A 660V 22X58 GL INDICATOR FAST
$27.83 Add to cart -
170M1365
63A 690V SMOOC AR
$130.00 Add to cart -
170M1565D
63A 690V NH000 gR
$180.00 Add to cart -

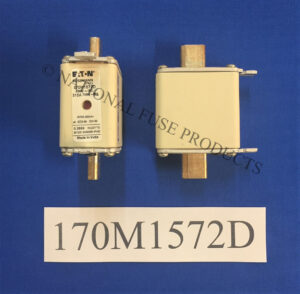

170M1572D
315A 690V DIN 00 aR Fuse-link, high speed, 315 A, AC 690 V, 200 kA, DIN 00, aR, DIN, IEC, type T indicator, square body with knife blade contacts
$230.00 Add to cart -
170M2702
160A 690V GR NH00 Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 160A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X Din 43-620 blade end, Class gR, DIN 43 620 – 170M2702
$350.00 Add to cart -
170M3021
500A 690V NH1 AR SEMICONDUCTOR
$370.00 Add to cart
