LITTELFUSE FUSE BLOCKS

When used with the correct fuses, fuse blocks help protect the wiring in electrical circuits. You can browse an assortment of quality-built Littelfuse fuse blocks below, or email us if
you can’t find what you need. Littelfuse fuse blocks enable easy fuse installation and replacement for automotive, electronic, and industrial applications.

Selection of the Fuse and Holder Solution

Littelfuse provides a set of questions to determine what fuse and holder solution is best for you:

Will the fuse need to be accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?

Product Image

Catalog #

Description

Price

Placeholder

L60030M-3SQDINR

30A 600V 3P MIDG BLK

$25.97

LCH132-2

$13.67

LCH132-3

$15.48

LCH133-3

$20.75

Littelfuse LCH135-1

PDB COVER Power Distribution Cover

$39.82

LD0402-3

3P POWER DIST BLOCK

$93.18

LD2570-3DIN

3P PDB, DIN RAIL MNT

$103.77

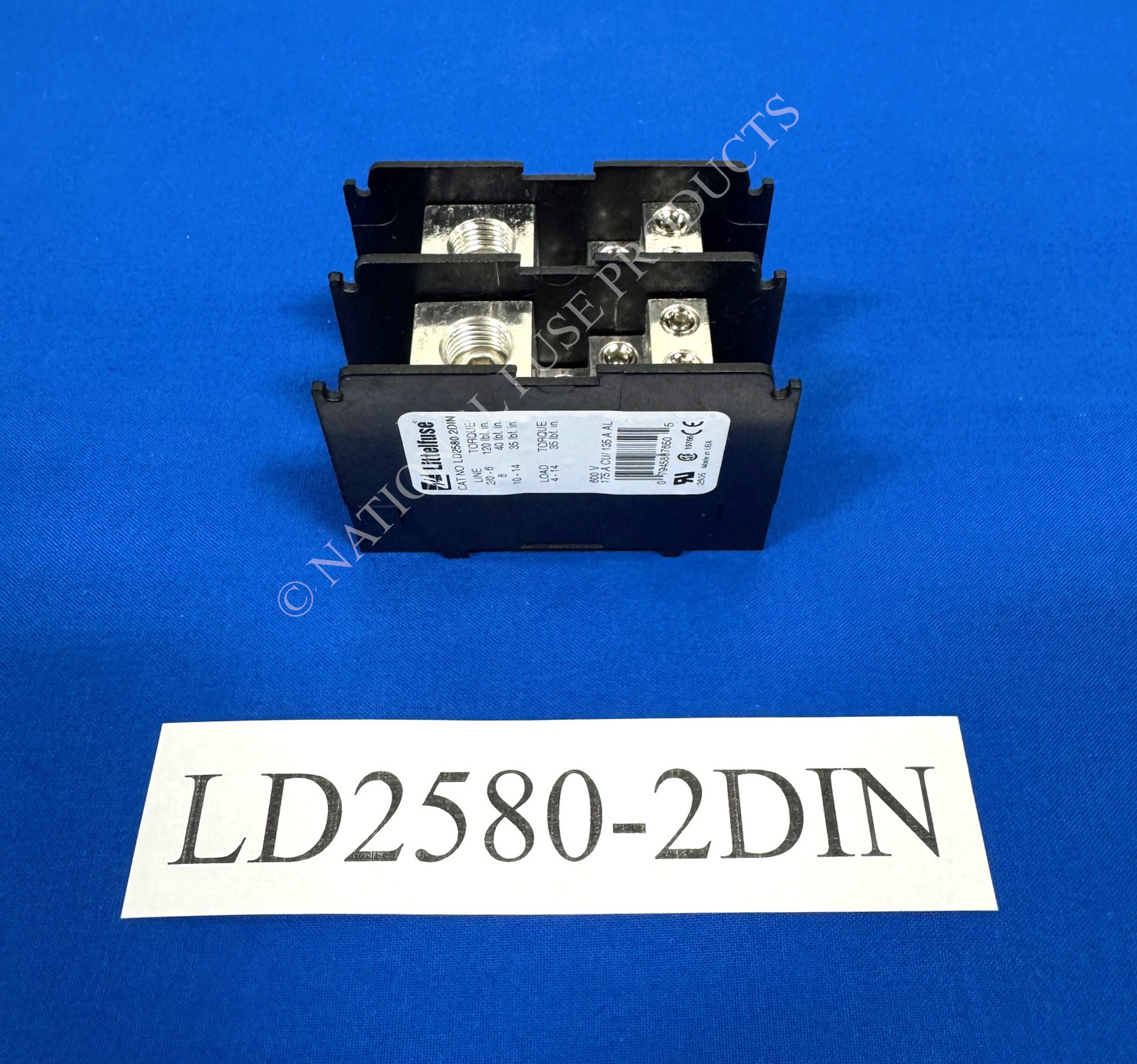

LD2580-2DIN

2P 175A 600V PDB DIN RAIL MOUNT Description POWR-BLOK power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. Lx2xxx-DIN series offers integral DIN-rail mount and an optional hinged safety cover. These blocks can be utilized wherever power needs to be distributed to more than one load. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material. They also protect personnel from accidentally contacting energized connectors. Connectors Box lug connectors are designed for use with a single or multiple, solid or class B or C stranded conductor. For UL approved use of more than one conductor per connector opening, contact Littelfuse Technical Service at 1-800-TEC-FUSE or techline@littelfuse.com. Ampere Ratings The ampere rating per pole for power distribution blocks is based on the line ampacity of 75 °C insulated conductors per NEC Table 310.16. If 60 °C insulated conductors are used, load must not exceed the ampacity of 60 °C conductors. Use of conductors rated in excess of 75 °C is permitted (for example 90 °C), however, load must not exceed the ampacity of 75 °C conductors. Applications • Heating, air conditioning and refrigeration systems • Elevator systems • Material handling equipment • Control panels, motor controls and switchgear ld-ls-datasheet

$70.98

LD2580-3DIN

175A 600V 3P PDB DIN

$102.84

LD3553-1

1P POWER DIST BLOCK

$78.82

LD5586-1

1P POWER DIST BLOCK

$178.74

LD5704-3

3P POWER DIST BLOCK Description
POWR-BLOKS power distribution blocks offer a safe,
convenient way of splicing cables, providing a fixed junction
tap-off point or splitting primary power into secondary
circuits. Lx2xxx-DIN series offers integral DIN-Rail mount
and an optional hinged safety cover.
Optional power distribution block covers provide protection
against accidental shorting between poles caused by
loose wires, tools, or other conductive material. They also
protect personnel from accidentally contacting energized
connectors.

$1,011.68

Placeholder

1P POWER DIST BLOCK

$300.41

Placeholder

2P POWER DIST BLOCK

$564.53

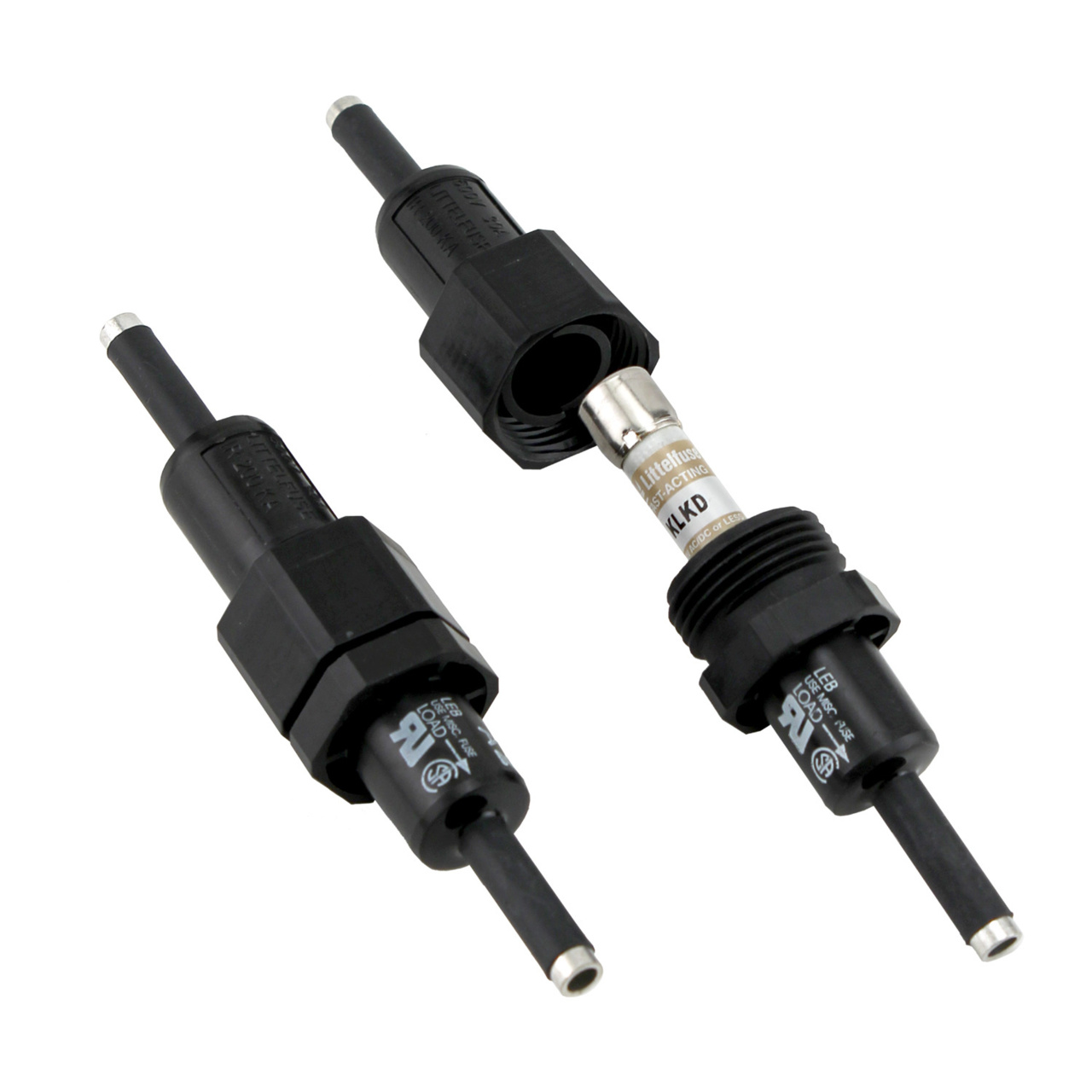

LEB-AA

NEW# LEB-AAK LEB-AA Has been obsoleted by Littelfuse and replaced by LEB-AAK

$25.62

LEB-AAK

30A CC MIDGET INLINE 30A 600V One-pole in-line fuse holder for Midget and Class CC fuses, Wire sizes #12 thru #8

$34.28

LEB-AAS

30A 600V IN LINE HOLDER

$88.17

LEB-JJK

FUSEHOLDER W/CG

$98.72

LEC-AA

30A 600V 2P CC HOLDER One-pole in-line fuse holder for Class CC fuses Description Recently Littelfuse 600 V ac/ V dc in-line watertight fuse holders allow maximum protection for high humidity and corrosive environments. The fuse holders are designed to be touch-safe and flexible for use in a variety of applications. See the list below for the redesigned part numbers. Applications Street lighting and parking lot lightingSports lighting and various outdoor illuminated signsBoat electrical circuits, tractors/yard equipment and general outdoor circuit protection (such as traffic signals, alley lighting and electric wheelchairs) Features/BenefitsDesign increases safety by facilitating individual device disconnection for easy servicing, eliminating shock riskIncreases efficiency by preventing faulted ballast from severely damaging fixture or deviceDesigned to meet IP67 touch-safe standardsWatertight o-ring sealVariety of terminations available for flexible designInsulating boots available for harsh environment

$53.32

Littelfuse LEC-JJS

30A 600V CC HOLDER One-pole in-line fuse holder for Class CC fuses Description Recently Littelfuse 600 V ac/ V dc in-line watertight fuse holders allow maximum protection for high humidity and corrosive environments. The fuse holders are designed to be touch-safe and flexible for use in a variety of applications. See the list below for the redesigned part numbers. Applications Street lighting and parking lot lightingSports lighting and various outdoor illuminated signsBoat electrical circuits, tractors/yard equipment and general outdoor circuit protection (such as traffic signals, alley lighting and electric wheelchairs) Features/BenefitsDesign increases safety by facilitating individual device disconnection for easy servicing, eliminating shock riskIncreases efficiency by preventing faulted ballast from severely damaging fixture or deviceDesigned to meet IP67 touch-safe standardsWatertight o-ring sealVariety of terminations available for flexible designInsulating boots available for harsh environment

$155.87
