cutler-hammer fusesCutler-Hammer boasts years of experience, dating all the way back to 1883. Constantly innovative, the year 1900 saw they develop the first-ever patent for an automatic motor, and the following year the company designed the control equipment for the Panama Canal. By the 1930s, engineers at Cutler-Hammer had obtained 28 patents for the use of vacuum tubes to control heavy currents.



In 1978, Eaton acquired Cutler-Hammer. Eaton has been in business for more than one-hundred years and services customers around the world. National Fuse is happy to carry a variety of Cutler-Hammer fuses and parts perfect for a range of projects and applications.



You can view National Fuse’s entire selection of Cutler-Hammer fuses and products from Eaton, as well as the rest of our catalog, online 24 hours a day, 7 days a week. If you have any questions about our range of Cutler-Hammer fuses, or if you need assistance choosing the right part, you can contact us anytime and a member of our team will respond as soon as possible. You can also reach National Fuse by phone at 800-328-0496.

Product Image
Catalog #
Description
Price
632A808A01

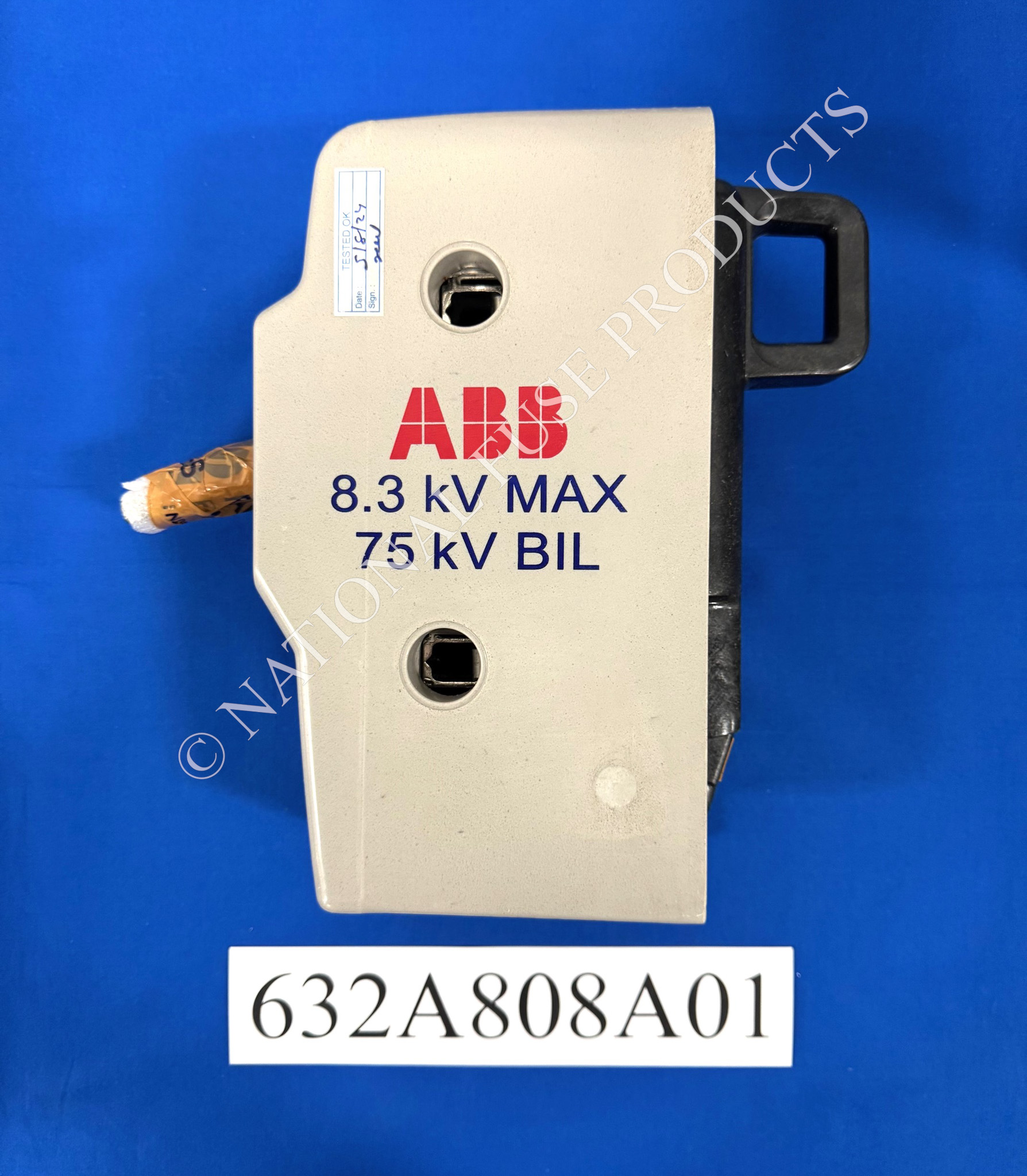

100A 2.6KV, 5.2KV AND 7.8KV FUSE CUT OUT   Types EU and EUH   Enclosed fused cutouts Distribution cutouts Product features − For outdoor use only − All live parts enclosed − Interrupting capacities: 14 kAIC at 2.6 kV to 8 kAIC at 7.8 kV   Description The ABB EU and EUH fuse cutouts are enclosed in a polymer concrete housing. They are furnished with a flipper latch assembly that aids in ejecting larger links. All EU and EUH units come with a NEMA “A” crossarm mounting bracket and a toggle screw that can make the operation “non-dropout”. The EU and EUH fuses are totally enclosed cutouts (no live parts exposed) for the 2.6 to 7.8 kV range where space is tight. The fuse tubes for the EU and EUH cutouts are a centerless ground, glass filament wound, unpainted tube with a horn fiber liner.   Application ABB type EU and EUH cutouts provide a complete line of enclosed polymer concrete cutouts. Only one box is needed for all voltage ratings. Two doors with fuse tubes and one door with a disconnect blade all fit in one box. This flexibility offers a great convenience to utilities who wish to increase the rating above 50 A or obtain extra heavy duty interrupting capacity in the future.   − Universal application: One cutout rated 100 A fused can be used on any system voltage from 2.4 kV delta to 13.8 kV three-phase grounded wye.   − Industrial application: EU and EUH cutouts can be used in replacement applications in close spaces where there are increased safety needs.   − Self-contained: Designed for either dropout or non-dropout operation, EU and EUH cutouts are field adjustable with a screwdriver. − Door interchangeability: All doors and boxes are mechanically interchangeable. Ratings EU ratings are normal duty up to 14,000 A single shot. The EUH heavy duty rating is for higher interrupting currents up to 20,000 A single shot. Standards and design testing The EU and EUH enclosed cutouts meet or exceed all applicable requirements of NEMA SG-2-1986 and ANSI C37.41.1981 and C37.42-1981 standards.   Standard design features − The 100 A EU and EUH is furnished with a flipper latch assembly to aid in ejecting the larger links. − All units are furnished with a NEMA “A” crossarm mounting bracket. − The caps on all tubes and disconnect blades are smooth top caps. − The fusible cutouts are furnished with a toggle screw that can make the operation non-dropout. − The fuse tubes for the EU and EUH cutouts are a centerless ground, glass filament wound, unpainted tube with a horn fiber liner. − Ratings are on the cutout door for quick viewing.
$1,622.00
