Description

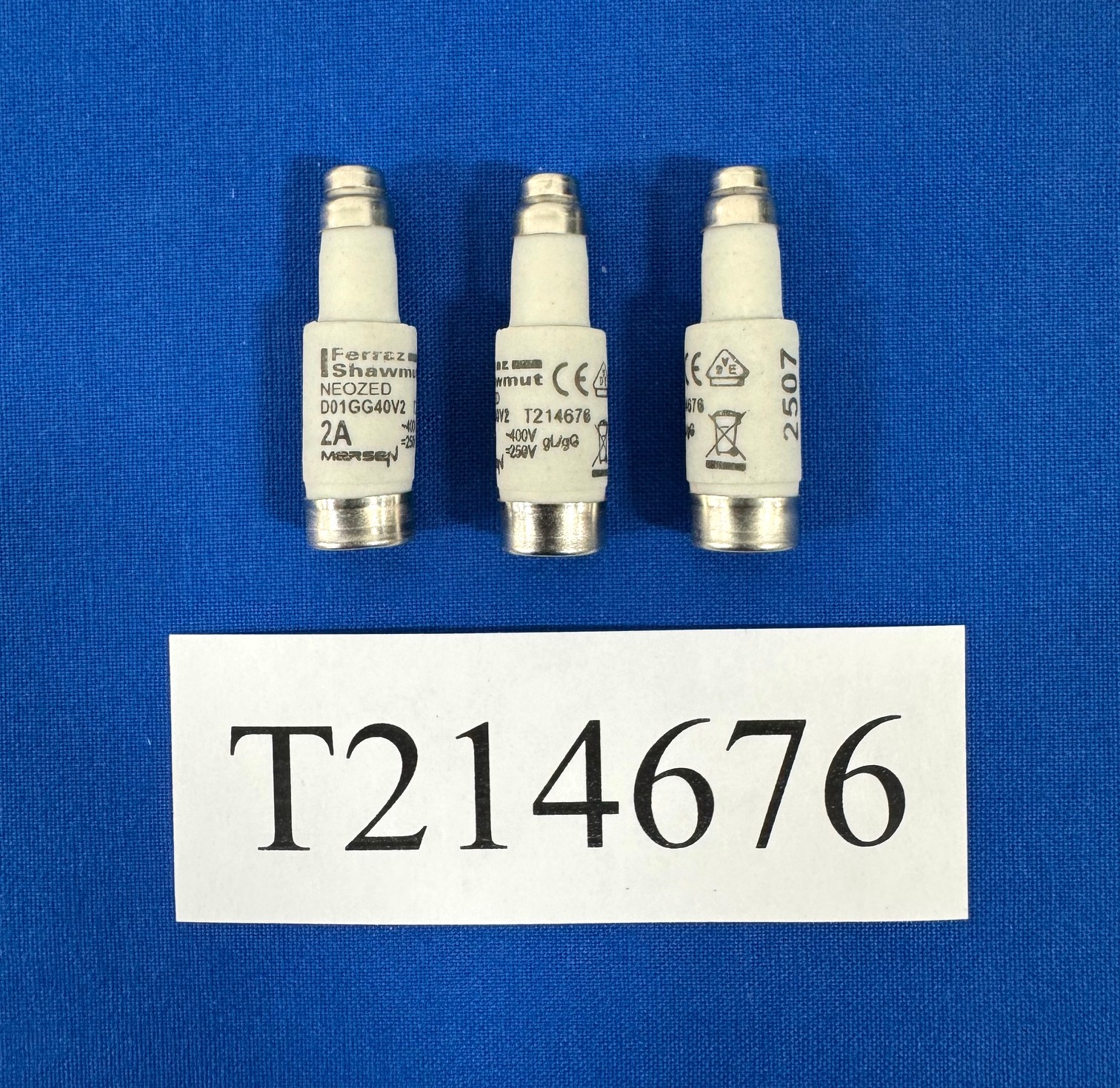

2A 400V NEOZED D01 GL/GG
DIN D0 Fuse-link Neozed gG Size D01 400VAC 250VDC 2A Color code Pink
The D0 fuse-system is installed in low voltage distribution units, where fuse-links are accessible to non trained persons and can also be replaced by them. The system is the most modern of the screw systems and designed for 400VAC/250VDC networks. The D0 fuse range comprises the standardized fuse sizes D01, D02 and D03.
Key features & benefits
- Insulated body suitable for high mechanical and thermal impacts
- Top and bottom contacts made of nickel plated or silver plated copper alloy
- Safe cut-off short circuits and over currents due to special design of fuse element
- Clear indication of operation condition due to coloured indicator un top contact
- Low power dissipation
- Optimized size
- Resistant to aging
Applications
- House incoming units
- Meter distribution units
- Distribution cabinets
- Installation cabinets
- Fuse boxes
