Description

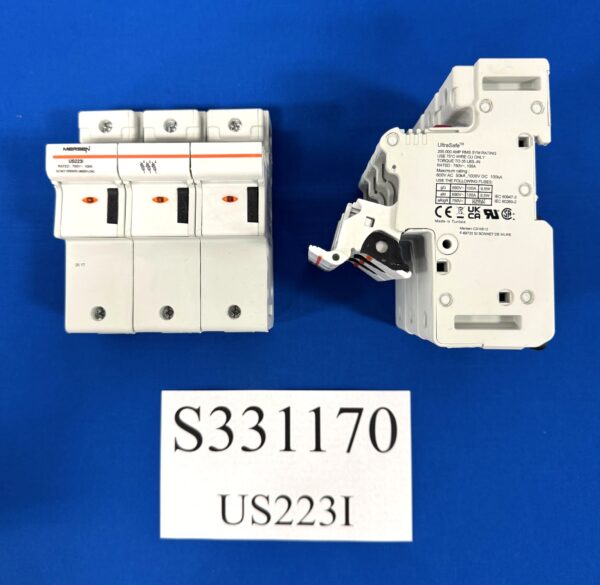

US223I 125A 1000VDC 3-POLE 22X58mm FUSE HOLDER W/INDICATION
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22×58 3-Pole Visual Indicator Pressure Plate IP20
The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.
Key features & benefits
- Finger safe
- Degree of protection: IP20
- Optional visual blown fuse indicator & microswitch
- DIN rail mounting
- Modular design
- Lockable
- Multi-pole assembly kit available
- Sealable in closed and open position
- Plastic material UL94V2 mini
- Flame retardant materials with glow wire flammability index to 960°C
Applications
- All circuits up to 750VAC for protection of motors,
- transformers, low voltage distribution, control circuits
- Non-load operation
