Description

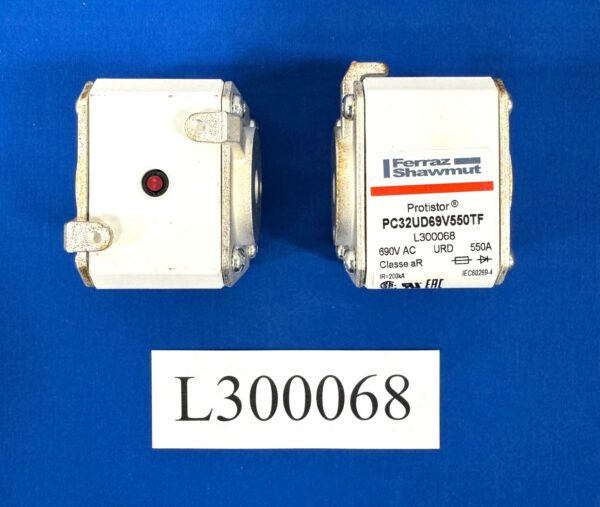

6,9URD32TTF0550
Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 550A With Striker Flush ends metric threads
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Key features & benefits
- Multiple body sizes and terminals or blades combination
- aR Class according to IEC 60269-4 and VDE 636-23
- Very low I²t for improved semiconductor protection
- Ultra fast acting
- Current limiting
- Superior cycling capability
Applications
- Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.
