$11.00

FCF2-30

Brand / manufacturer: FUJI FUSES

Amperage Rating: 30

Voltage: 500

Department: 12

Series: FCF2

Catalog Number: FCF2-30

Catalog / class: Current Limiting

Speed: Time Lag

SKU: FCF2-30

Categories: , , ,

*Prices Subject to Change

Description

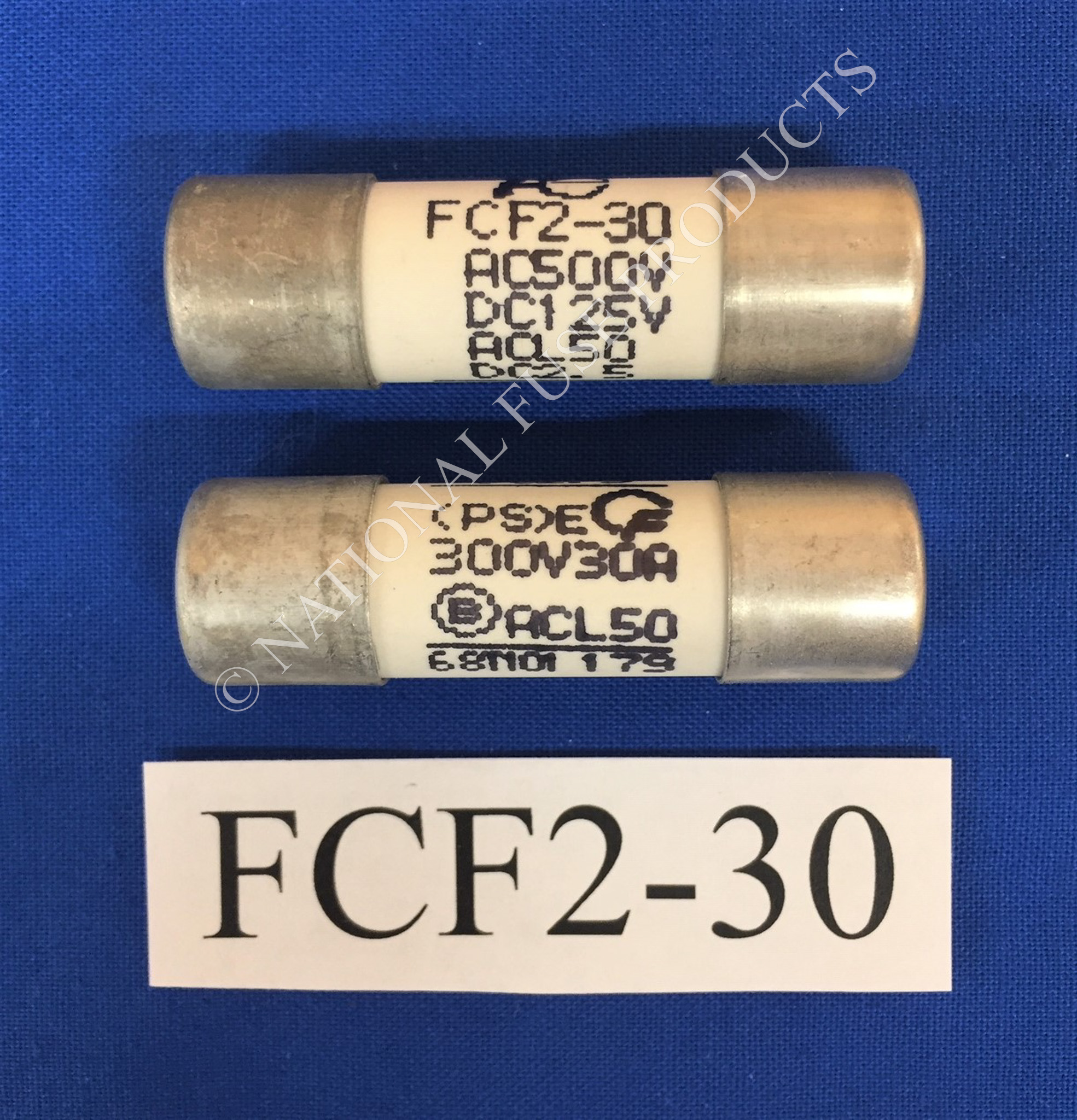

30A 500V TD FUJI FUSE



  • 30 Amps
  • 500 Volts AC
  • Current limiting
  • Ferrule style
  • Low temperative melting
  • Ceramic barrel housing
  • Non-RoHS compliant
  • Interrupt rating 50kA @ 500V
  • 1.97″ height x .59″ width x .59” depth
  • .71 oz. in weight



The Fuji FCF2-30 fuse is part of the Fuji FCF and FCK series of fuses. The FCF and FCK fuses use a specially designed low-temperature melting element, a feature of ‘dual element’ fuses. There is no fuse deterioration due to overcurrent phenomena such as rush current at the time of motor starting and they also feature time-lag operation characteristics. The fuse link is housed in a ceramic barrel with excellent thermal and mechanical characteristics and is packed in silica sand which prevents arcing. The FCF fuse link end is a solid ferrule style. The FCK link end fuse is a center blade-type.



Fuji FCF and FCK Series Datasheet
