Description

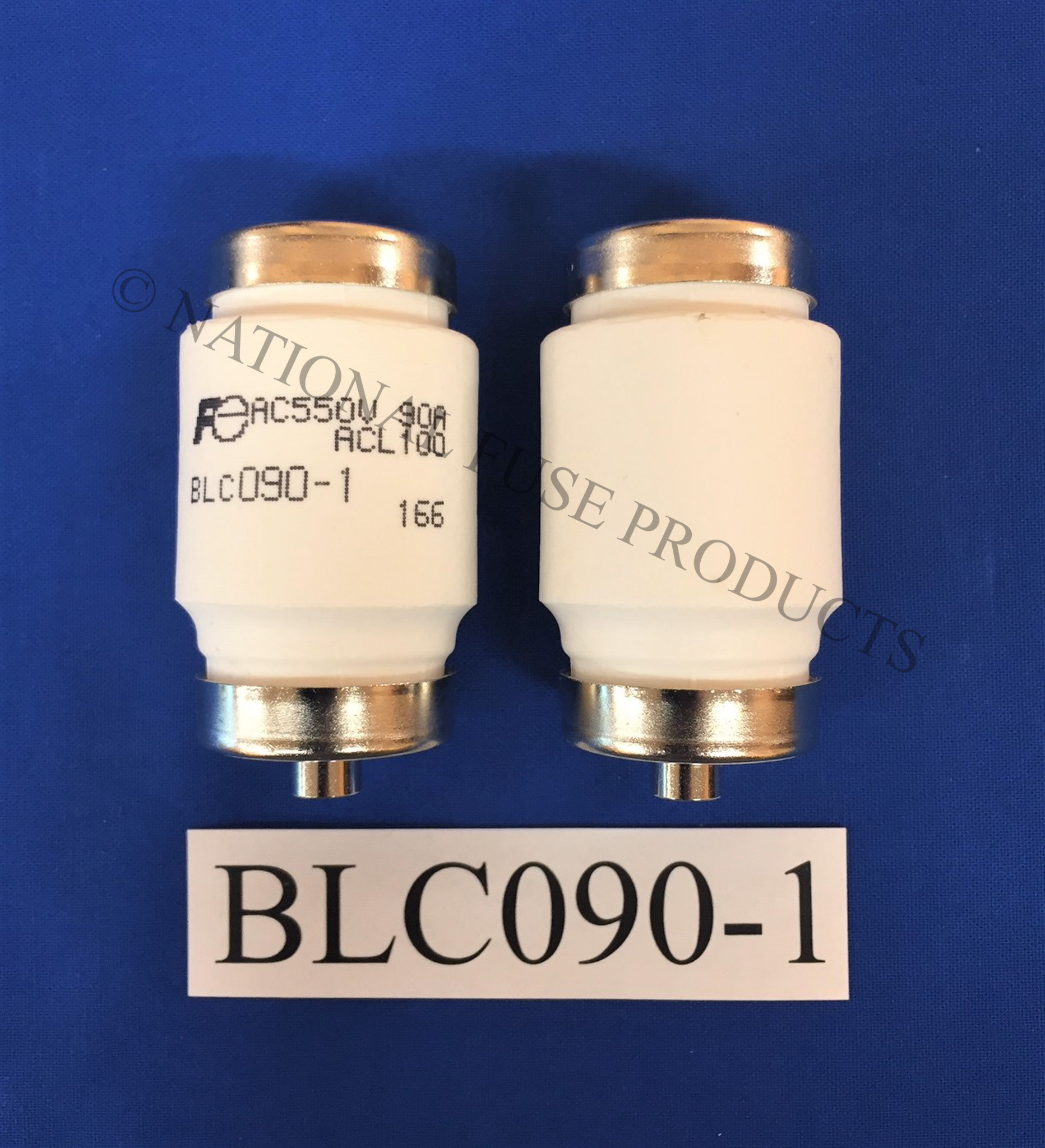

90A 550V SEMI FUSE
- 90 Amps
- 550 Volts AC
- Current limiting
- Plug-in type super rapid fuse
- Built-in trip indicator (red)
- Tip color indicates amperage
- Open fuse indication window
- UL recognized
- Interrupt rating 100kA @ 550V
- 2.48” height x 1.34” width
- 4.23 oz. in weight
The Fuji BLC090-1 fuse is part of the Fuji BLC, CR, CS series of fuses. They are extremely reliable fuses which have been specially developed to provide protection for silicon diodes and thyristors. They are suitable for inverters using semiconductors or transformers-rectifiers. This Fuji super rapid fuse is designed with a very small total I2t value which gives the Fuji BLC090-1 a high-speed interrupting action in the face of abnormal currents. As a result, the arc voltage generated at the time of interruption has a low value so that faults will not influence related electric machinery and equipment.
