$365.12 per piece

F300201

Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)

Amperage Rating: 800

Voltage: 700

UPC: 3605340324808

Department: 16

Series: URD

Catalog Number: F300201

Catalog / Class: Semiconductor

Speed: Very Fast Acting

SKU: F300201

Categories: , , , , , ,

*Prices Subject to Change

Description

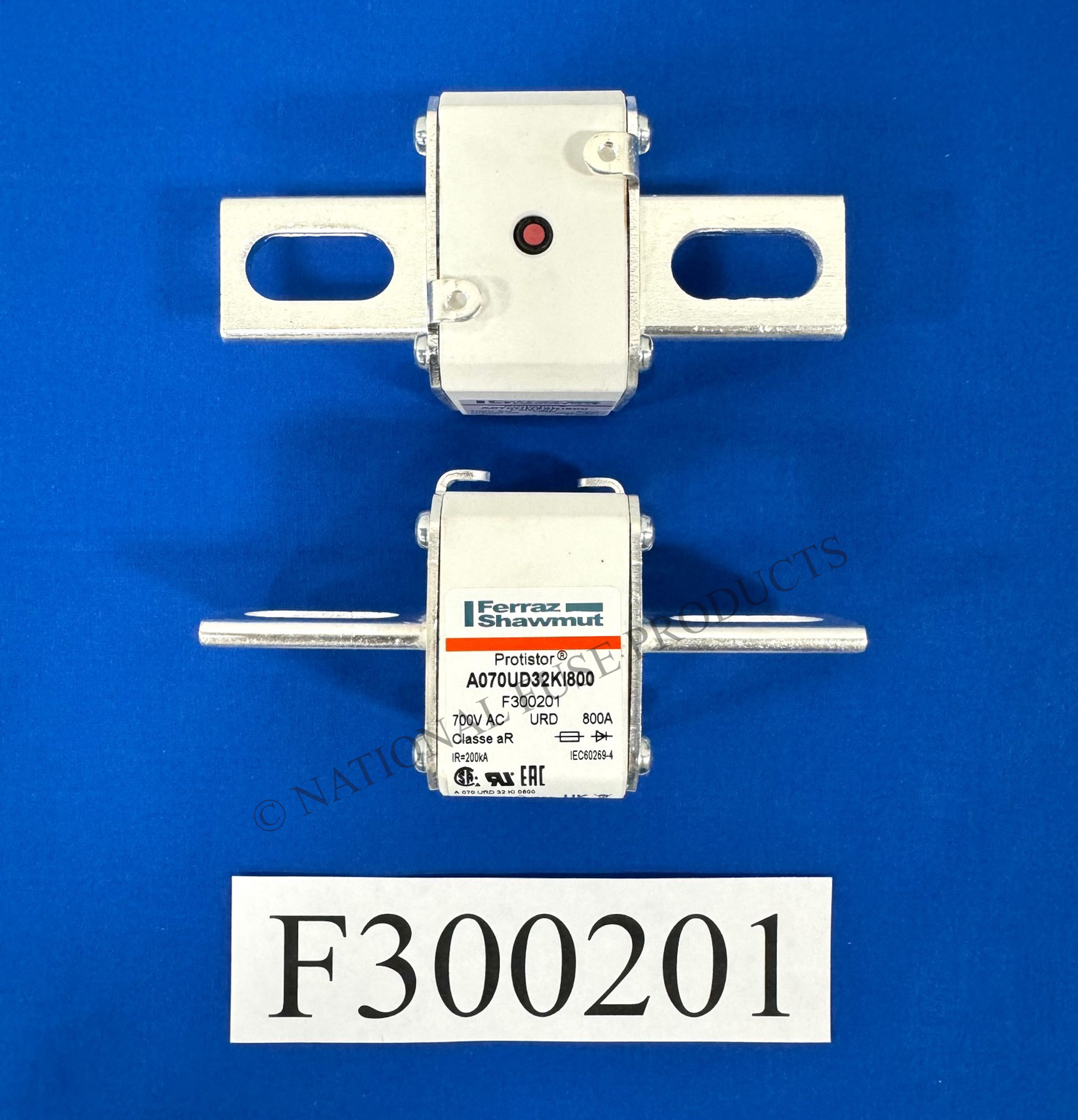

A070URD32KI0800

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

  • Multiple body sizes and terminals or blades combination
  • aR Class according to IEC 60269-4 and VDE 636-23
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability.

Applications

  • Protection of inverters, motor drives, UPS systems and similar 690V or less equipment
