$176.68 per piece

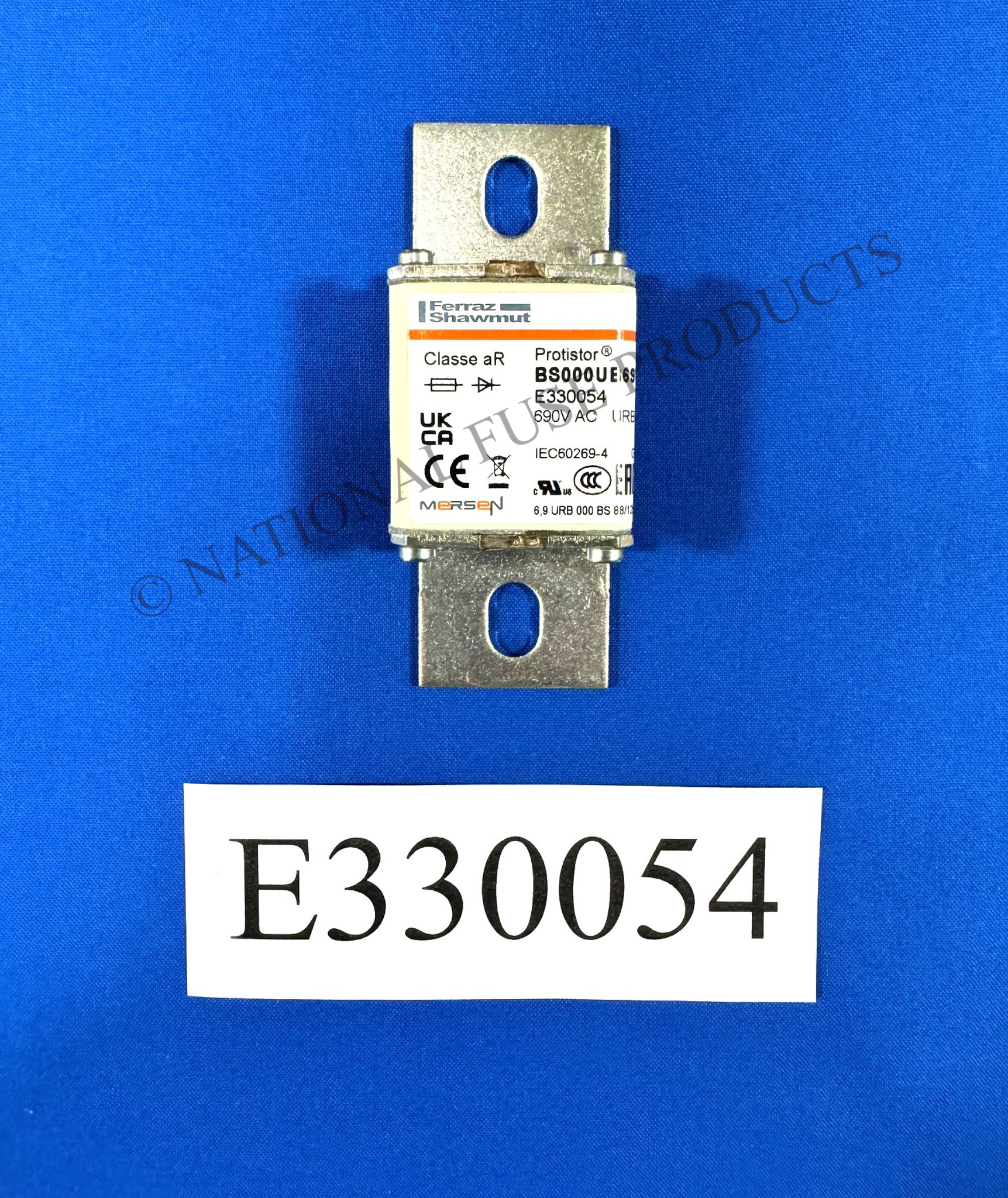

E330054

Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)

Amperage Rating: 125

Voltage: 690

UPC: 3605340361407

Department: 16

Series: Protistor

Catalog Number: E330054

Catalog / Class: Semiconductor

Speed: Very Fast Acting

SKU: E330054

Categories: , , , , , , ,

*Prices Subject to Change

Description

125A 690V SEMI FUSE

BS000UB69V125  6,9 URB 000 BS 88/125

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

  • aR Class according to IEC 60269-4 and VDE 636-23
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Superior cycling capability

Application.

  • Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.
