Description

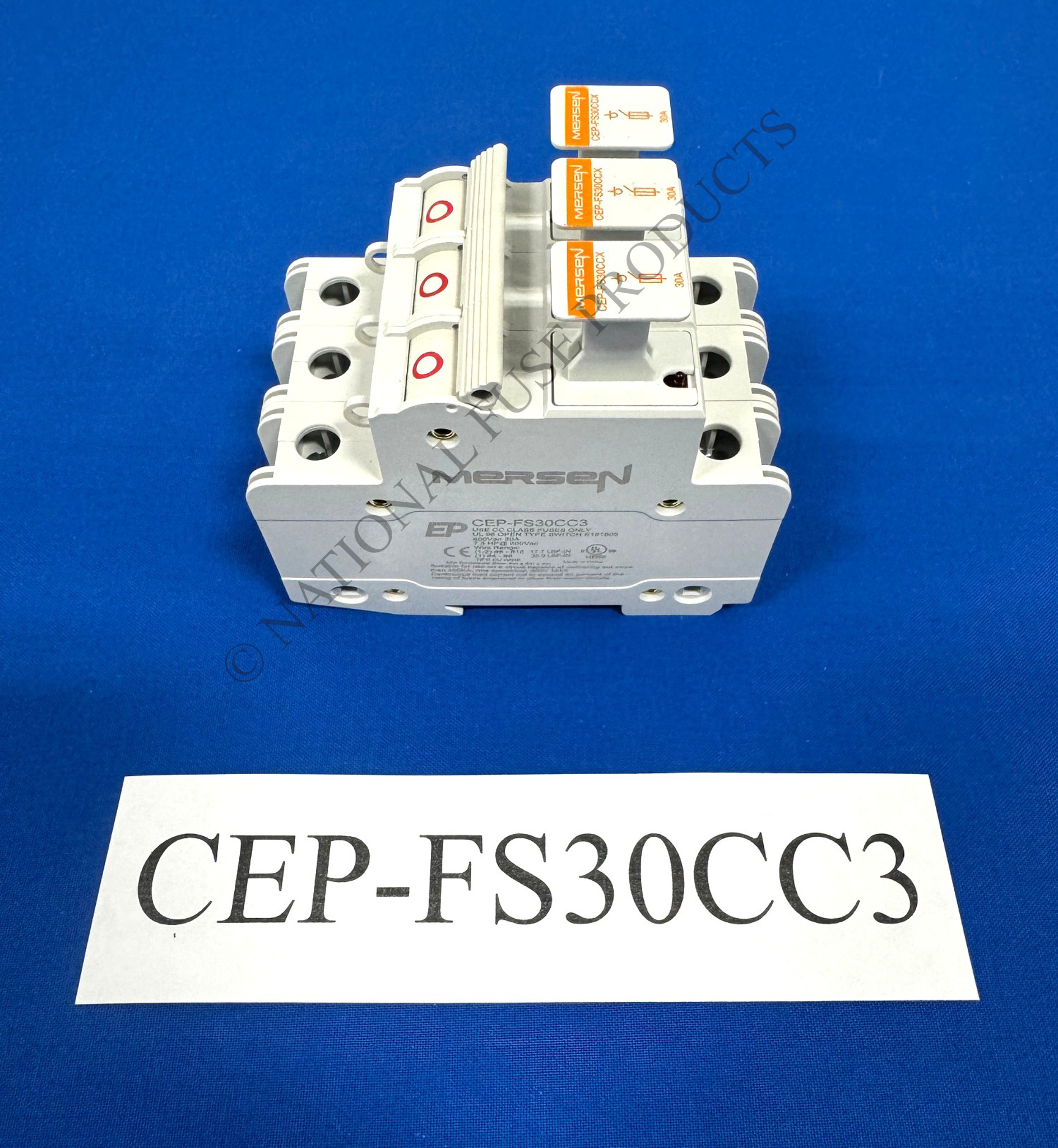

FUSED DISCONNECT SWITCH 30A CL
UL 98 Fusible Switch 600VAC Class CC 30A 3-Pole
Mersen’s Compact Fused Disconnect incorporates the switch functionality with the high protection level of a fuse. The switch accepts UL class CC fuses up to 30A. In addition to this, the Compact Fused Disconnect is UL 98 listed and suitable for use as main/feeder device and, in conjunction with CC fuses, is rated for branch circuit protection. It has a smaller footprint compared to a traditional Class CC disconnect with a max interrupting rating of 200kA.
Key features & benefits
- 30A Fused disconnect
- UL Listed
- Smaller footprint compared to a traditional Class CC disconnect
- Accepts Class CC 30A fuses
- 35mm DIN rail mounted
- Built-in lockout/tagout feature
- 200kA SCCR rating
- 75°C CU Wire
Applications
- For use as main/feeder device and in conjunction with CC fuses
- Is rated for branch circuit protection
