$1,016.59

CBI2420A

Brand / manufacturer: ALTECH

Amperage Rating: 20

Voltage: 110-277

Department: 30

Series: CBI

Catalog Number: CBI2420A

Catalog / class: UPS Power Supply

SKU: CBI2420A

Categories: , , ,

*Prices Subject to Change

Description

20A 24VDC UPS POWER

  • 20 Amps
  • 24 Volts DC
  • Input: Single phase 115-277 Volts AC
  • Output: Battery charging 24 Volts DC, 20Amps
  • IP20 rated
  • Weight: 1.9 lbs.

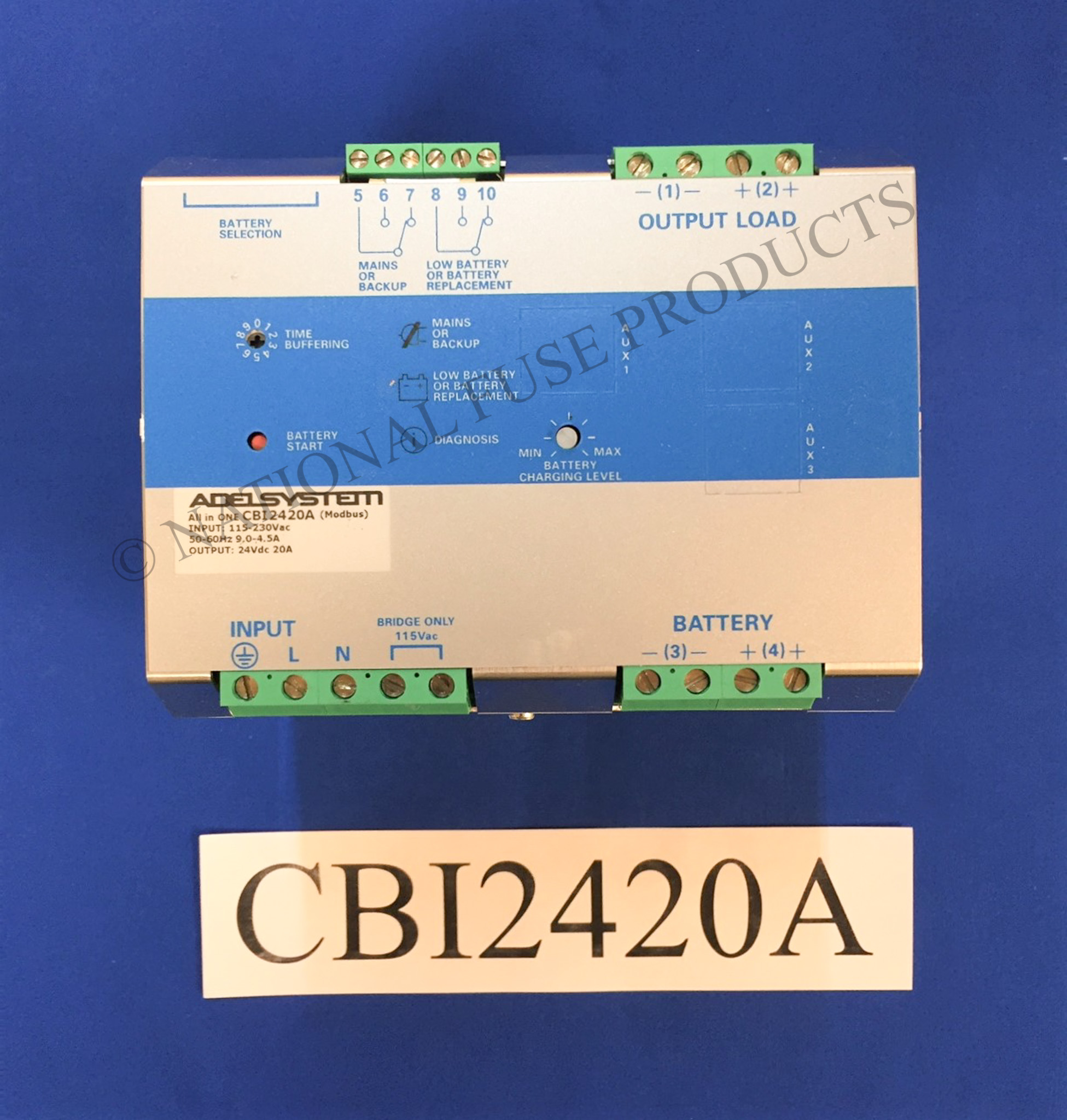

The Altech CBI2420A DC-UPS system is part of Altech’s CBI series and built to optimize power management. The available power is automatically allocated between load and battery, supplying power to the load is the first priority. For high inrush applications the charging power will reroute automatically to the load. In this case the maximum available current on the load output is two times the value of the device rated current.

The Altech CBI2420A power supply, battery charger and backup module is suited for the following battery types: open lead acid, sealed lead acid, lead gel and Ni-Cd (option). This unit offers automatic diagnostic of battery status, offering three charging levels of boost, trickle, or recovery. It protects against short circuit, inverted polarity and overload.

Altech CBI2420A Datasheet
