Description

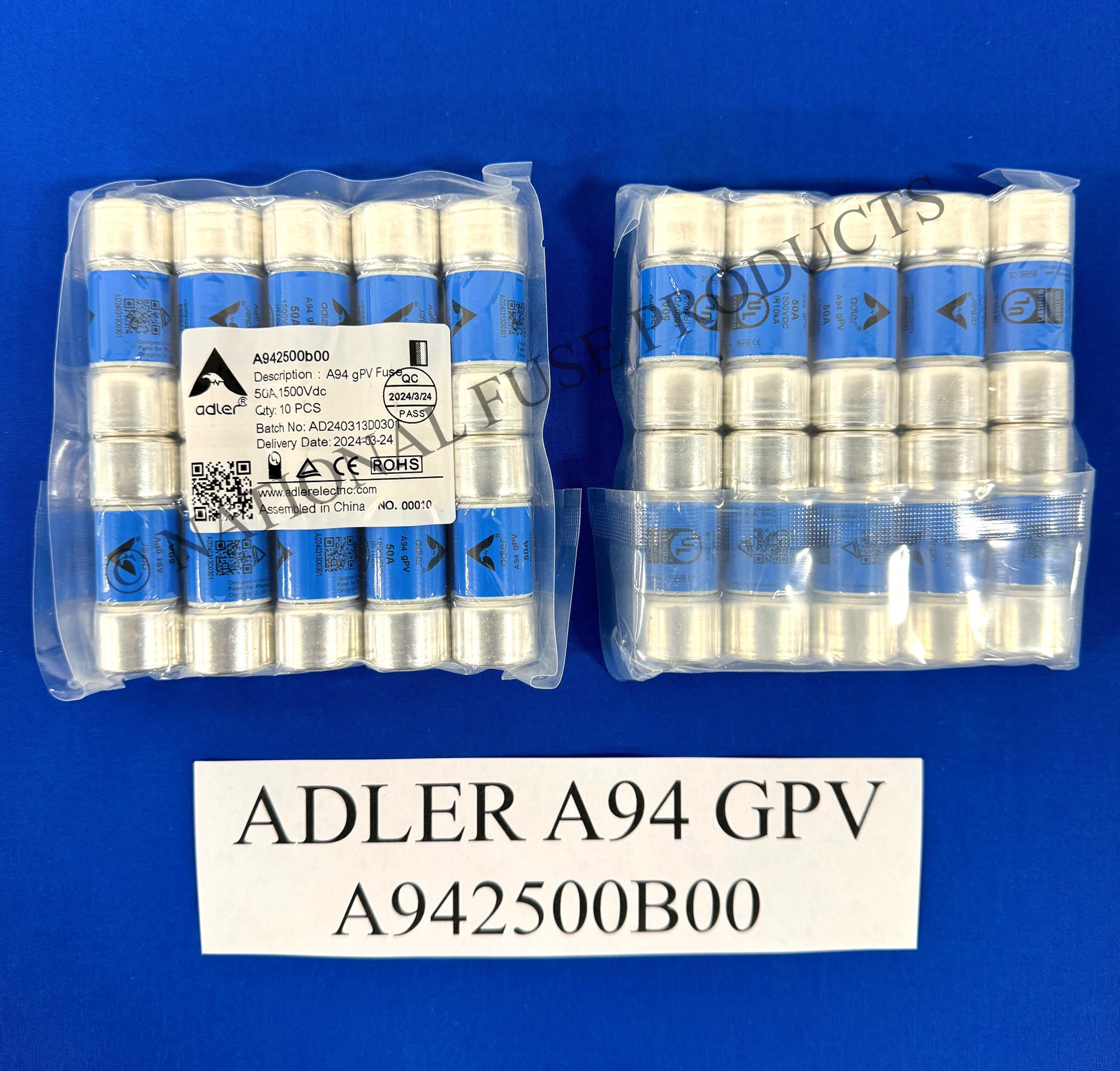

50A 1500VDC 22X58
FEATURES:
• 1500Vdc, 22×58 mm PV fuse link with glass-fiber body
• Rated Current: 1-80 A
• Breaking Capacity: 30 kA at 1500 Vdc (1-65 A)
10 kA at 1300 Vdc (70 A、80 A)
• TimeConstant: 1-3 ms
• Special design with silver plated caps for high-power PV
applications
• Customizable for special applications
DESCRIPTION
Adler A94 series PV fuses are engineered and manufactured
for use in Combiner Box and Power Storage Protection, made
from the highest quality materials and tested to the highest
standards.
AGENCYINFORMATION
• Standard: UL 248-19, IEC 60269-6
• Approvals: UL (File: E490190), TUV(50452200)
• Manufactured under IATF 16949 quality system
• RoHSandREACHCompliant
APPLICATIONS
• PVcombiner / junction boxes
• Inverters
• Battery Charge Controllers
