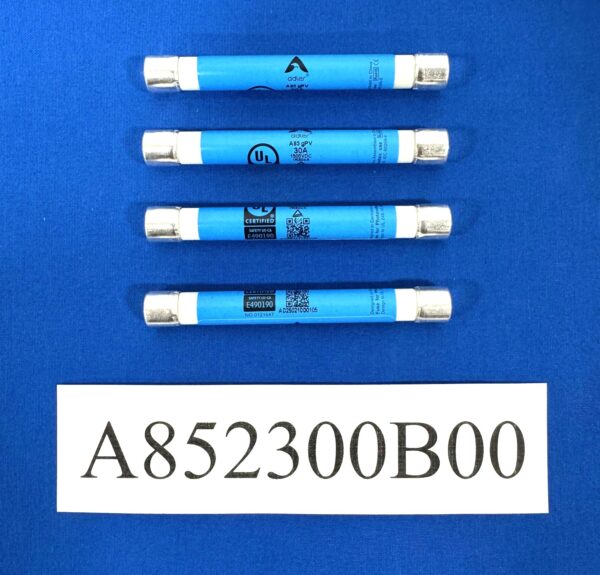

30A 1500VDC CARTRIDGE FUSE
DESCRIPTION
Adler A85 series PV fuses are engineered and manufactured for
use in Combiner Box and Power Storage Protection, made from the
highest quality materials and tested to the highest standards. With
rated currents from 1A to 32A with a breaking capacity of 30kA.
FEATURES
• 1500 Vdc, 10×85 mm PV fuse-link with glass-fiber body
• Rated Current: 1-32 A
• Rated Breaking Capacity: 30 kA @ 1500 Vdc (1-32A)
Self – Certified: 50 kA @ 1500 Vdc (1-20A)
• Time Constant: 1-3 ms
• Special design with silver plated caps for high-power
PV applications
• Customizable for special applications
• BH300-01, BH300-02 holders for DIN rail mounting
A85xxxxb00
AGENCY INFORMATION
• Approvals: UL 248-19 (File: E490190)、TUV(File:50475498)
• Approvals: IEC 60269-6
• Manufactured under IATF 16949 quality system
• RoHS and REACH Compliant
APPLICATIONS
• PV combiner / junction boxes
• Inverters
• Battery Charge Controllers
