Description

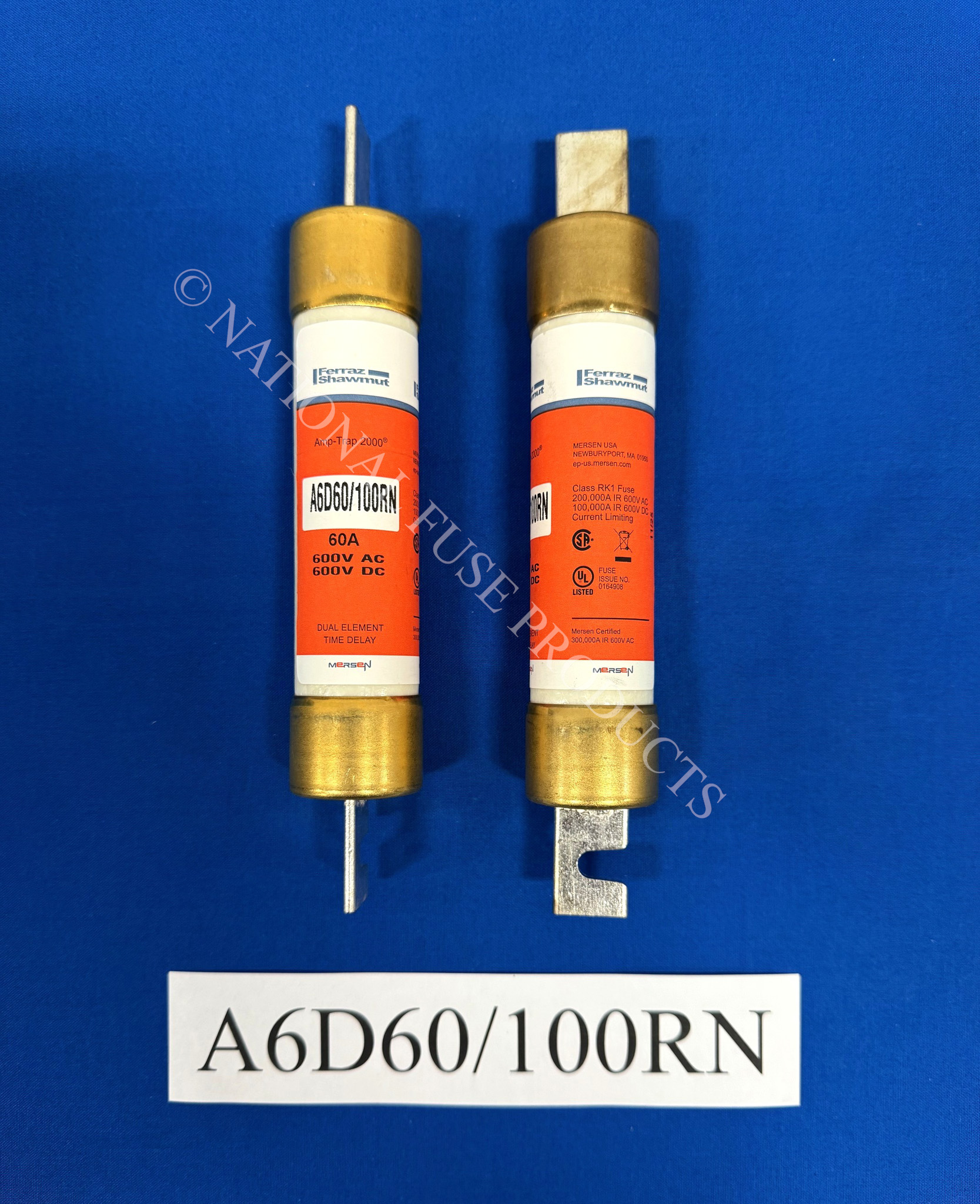

100A SIZE TO – 60A 600V CLASS RK1 TIME-DELAY REDUCER FUSE
Fuse A6D-R – Reducer Fuses – Class RK1 – Time-Delay 600VAC 600VDC 60A Blade Amp-Trap 2000®
A6D-R Reducer Fuses are a safe, permanent solution for decreasing your current rating without using a Fuse Reducer accessory, which is designed for temporary use only. These special purpose UL Listed reduced rating Class RK1 fuses provide the same trusted protection levels as a traditional A6D-R Class RK1 fuses, but in a larger body.
Key features & benefits
- Replaces traditional temporary-use only Fuse Reducer accessories
- Time-delay for motor starting and transformer inrush currents
- without nuisance opening
- 600VAC & 600VDC dual rated
- 300kA interrupting rating – self-certified, UL witnessed tests
- Extremely current-limiting for low peak let-thru current
- Recommended for Arc Flash energy reduction
- Easy 2-to-1 selectivity for prevention of nuisance shut downs and
- “black outs”
- Rejection-style design prevents replacement errors (when used
- with recommended fuse blocks)
- High-visibility orange label gives instant brand recognition
- Reduced inventory by taking the place of lower-rated Class RK1
- fuses and associated Fuse Reducer accessories
- Metal-embossed date and catalog number for easier traceability
- and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial
- settings
Applications
- Motors
- Safety switches
- Transformers
- Branch circuit protection
- Disconnects
- Control panels
- All general-purpose circuits
