$224.83 per piece

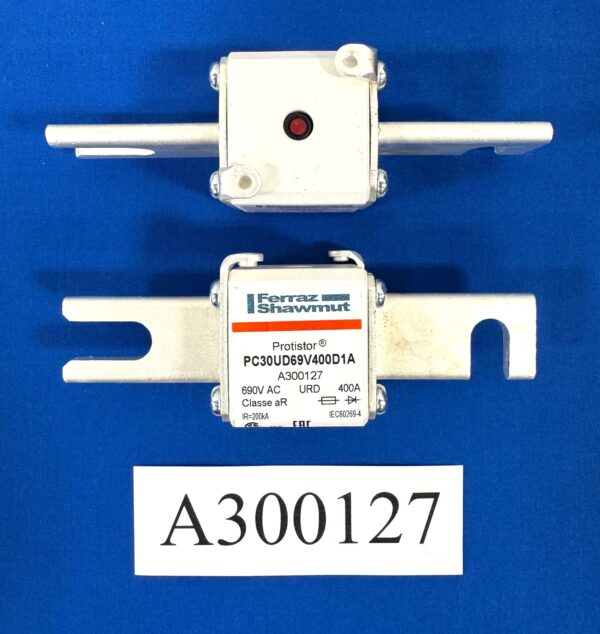

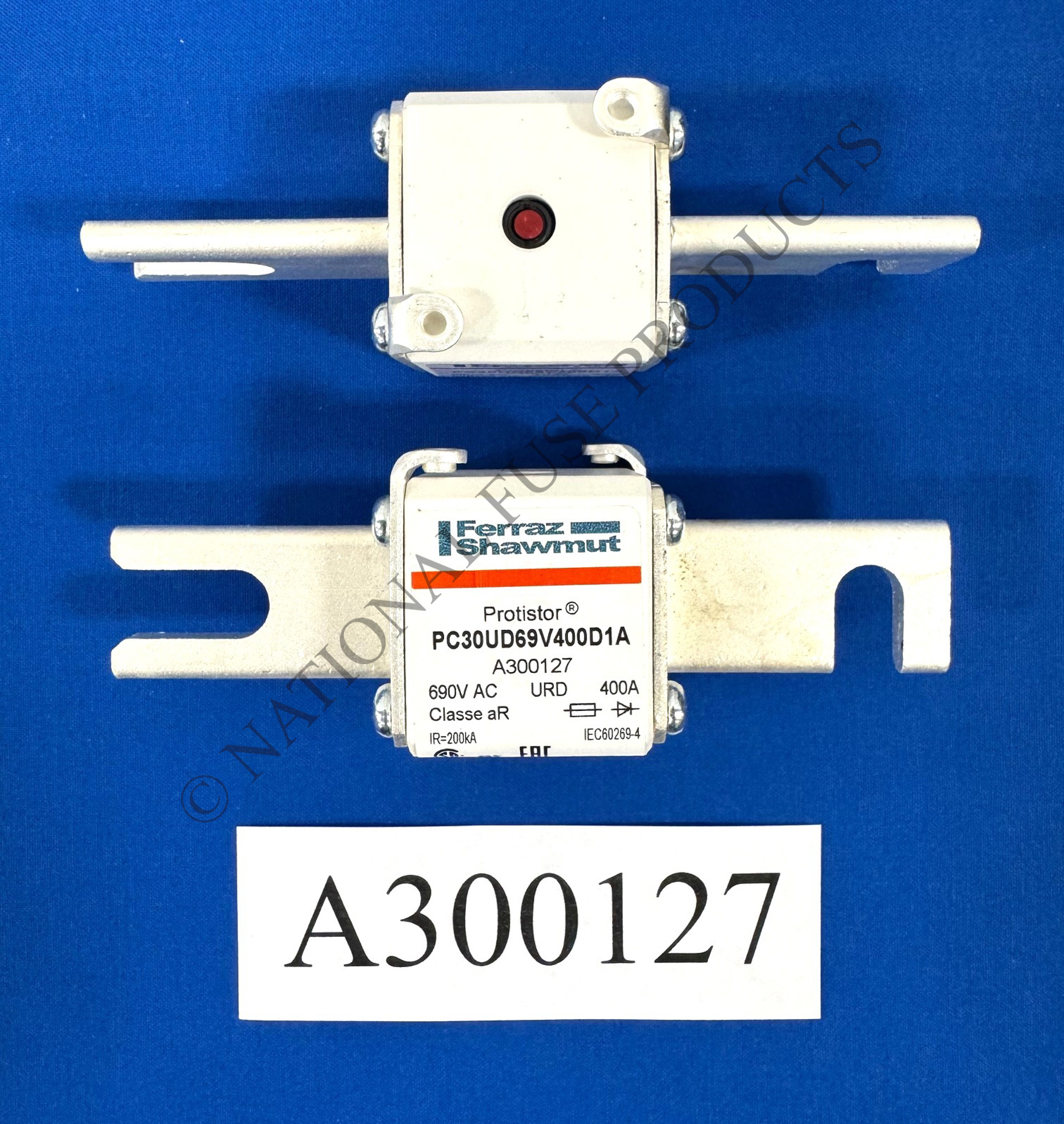

A300127

Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)

Amperage Rating: 400

Voltage: 690

Department: 16

Series: URD

Catalog Number: A300127

Catalog / Class: Semiconductor

Speed: Very Fast Acting

SKU: A300127

Categories: , , , , , , ,

*Prices Subject to Change

Description

6,9URD 30 D11 A0400

PC30UD69V400D1A

The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

  • Multiple body sizes and terminals or blades combination
  • aR Class according to IEC 60269-4 and VDE 636-23
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability
