$6.35

345613A

Brand / manufacturer: LITTELFUSE ELECTRONIC FUSES

Amperage Rating: 20

Voltage: 600

Department: 28

Series: 345

Catalog Number: 345613A

Catalog / class: Fuse Holder

SKU: 345613A

Categories: , , , , ,

*Prices Subject to Change

Description

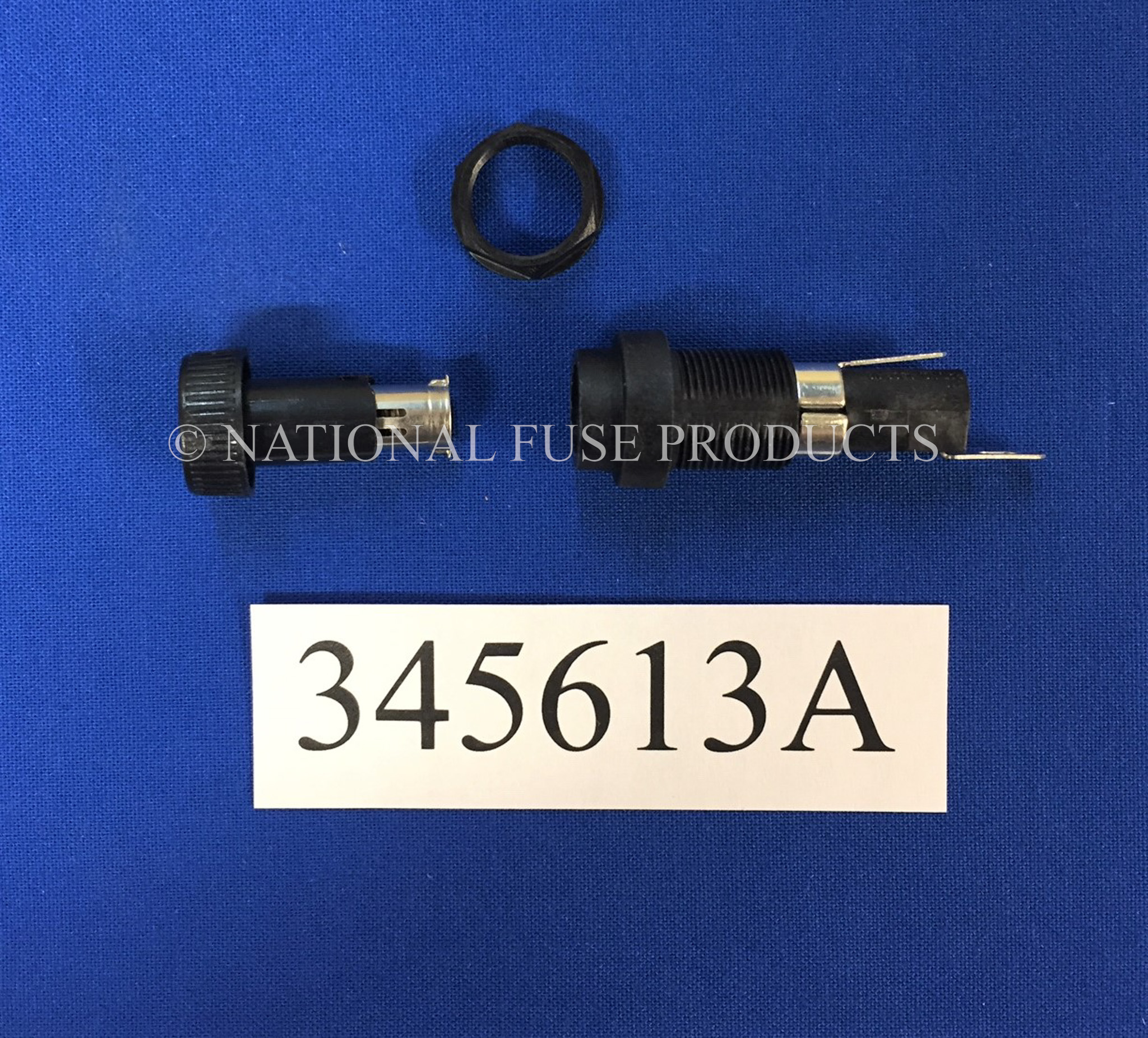

20A 600V FUSE HOLDER



For 3AB/3AG, 5×20mm Fuses Description Designed to eliminate the possibility of electricalshock, as defined in IEC standards 60127-6. The universal fuse holder body will accept 3AB, 3AG, and 5 × 20mm fuse sizes.Electrical Insulation Resistance: 10,000 meg ohm minimum at500 VDC. Contact Resistance: Less than .005 ohm average at currents up to 1 ampere. Dielectric Strength: 4,000 volts minimum.Mounting Threaded styles withstand 15 in.-lb. mounting torque.Low profile and High profile panel thickness: .032”min./.310” max.Molded Parts Body Material: Black glass-filled thermoplastic (UL 94V0).Knob Material Grey or black glass-filled thermoplastic (UL94 V-0) Hex Nut Material: Black glass-filled thermoplastic.Knob Fuse Extractor type with plated copper alloy insert.Plated copper alloy contact clips. Spring loaded, locking mechanism provides an anti-tease feature and will not vibrate loose.Terminals Plated cooper alloy, A-187; dual purpose terminal accepts wire for soldering or a Quick-Connect receptacle.Ambient Temperature–40ºC to +85ºC.Hardware Threaded style fuse holders are supplied with a thermoplastic hex nut unassembled
