Description

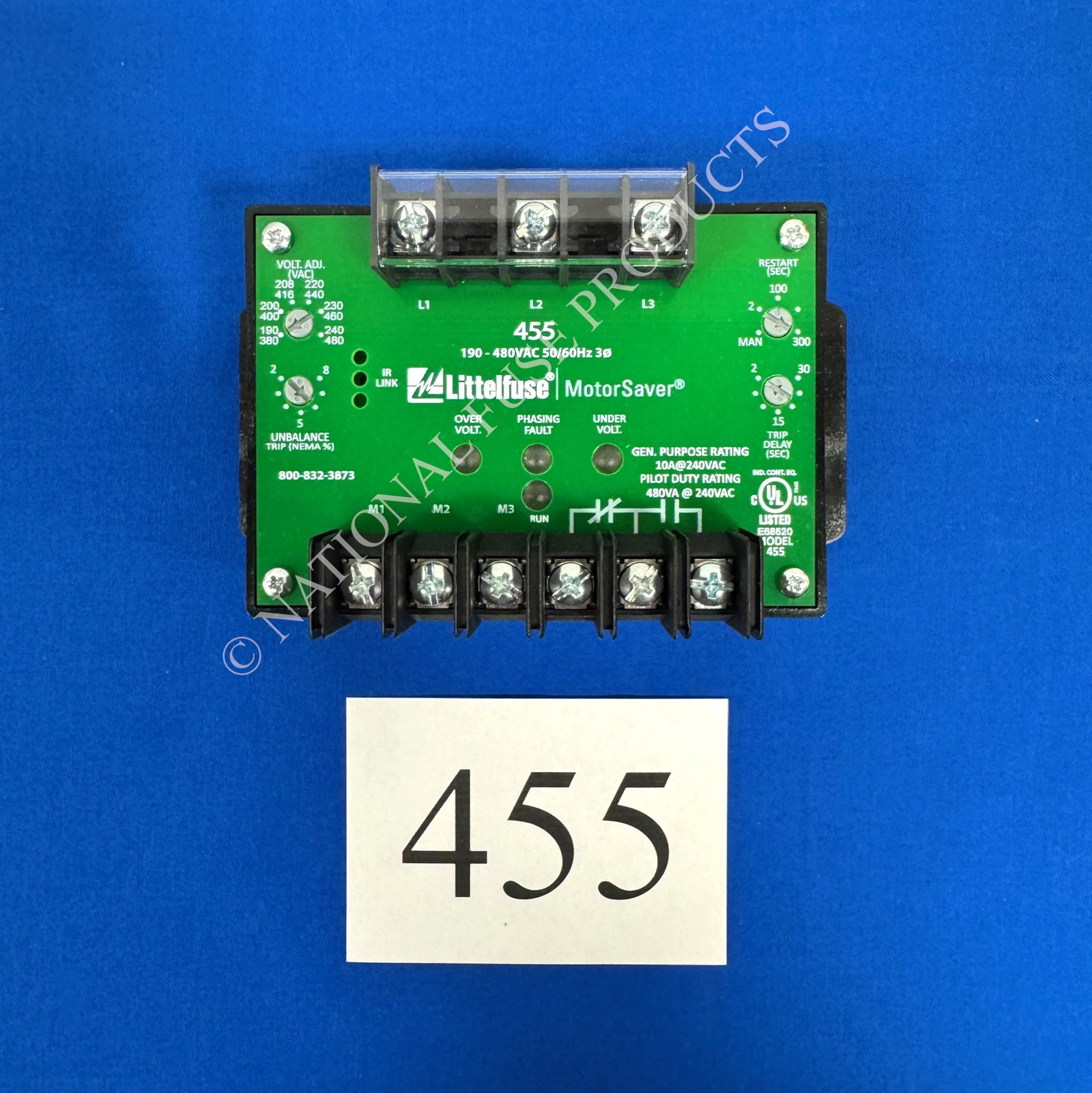

The 455 series is a three-phase, dual-range voltage monitor that combines load and line side monitoring for a complete
protection solution. Load side monitoring alerts the user to contactor failure or impending contactor failure. Line side
monitoring protects the motor from damaging fault conditions that may be present prior to the motor starting. This is
unique because with other line/load side monitors, the motor must be started before a voltage fault is detected. With the
455 series, the motor is fully protected at all times.
This voltage monitor protects 190–480 V ac, 50*/60 Hz motors regardless of their size. It automatically selects between
the 200 V and 400 V range when the user selects the nominal voltage setpoint. Other adjustments include a 2–30 second
trip delay, a 2–300 second restart delay (and manual restart), and a voltage unbalance trip point of 2–8%. The voltage
monitor’s circuitry is powered through the line side connections so there is no need for separate control power, making it
easy to install.
Equipped with an infrared LED, the 455 series can communicate with the optional hand-held diagnostic tool, Informer-MS,
to obtain valuable information such as real-time voltage, voltage unbalance on both line and load sides, motor run hours,
last 20 faults, last 32 motor starts, high- and low-voltage trip points, voltage unbalance trip point, restart and trip delay
settings, LED status, and more
Applications
• Oil rigs
• Compressors and fan motors
• HVAC
• Heat, well, and sump pumps
• Small conveyer motors
