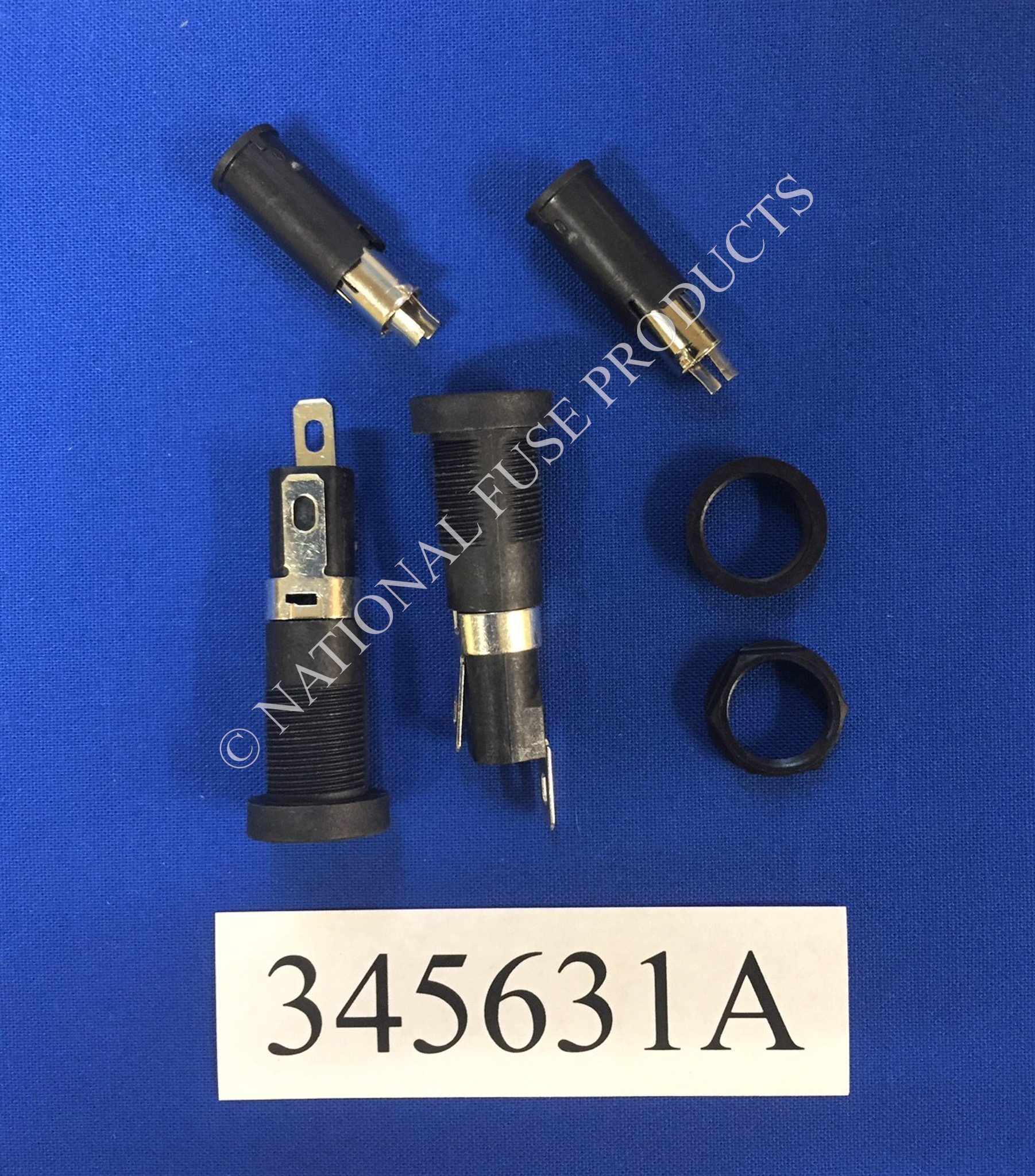

20A 600V 5X20 PANEL MOUNT HOLDER
20 Amp 600 Volt 5X20mm Screwdriver Slot Low Profile Front Mount Straight Terminals
Designed to eliminate the possibility of electrical
shock, as defined in IEC standards 60127-6. The
universal fuseholder body will accept 3AB, 3AG, and
5 × 20mm fuse sizes.
Electrical
Insulation Resistance: 10,000 megohm minimum at
500 VDC. Contact Resistance: Less than .005 ohm
average at currents up to 1 ampere. Dielectric
Strength: 4,000 volts minimum.
Mounting
Threaded styles withstand 15 in.-lb. mounting torque.
Low profile and High profile panel thickness: .032”
min./.310” max.
Molded
Parts
Body Material: Black glass-filled thermoplastic
(UL 94V0).
Knob
Material
Grey or black glass-filled thermoplastic (UL94 V-0)
Hex Nut Material: Black glass-filled thermoplastic.
Knob
Fuse Extractor type with plated copper alloy insert.
Plated copper alloy contact clips. Spring loaded,
locking mechanism provides an anti-tease feature and
will not vibrate loose.
Terminals
Plated cooper alloy, A-187; dual purpose terminal
accepts wire for soldering or a Quick-Connect
receptacle.
Ambient
Temperature –40ºC to +85ºC.
Hardware Threaded style fuseholders are supplied with a
thermoplastic hex nut unassembled.
Ingress
Protection
IP40 : Protected from solid objects greater than 1
millimeter. Not protected from liquids.
