Description

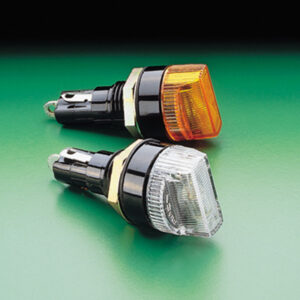

20A 250V WATER-PROOF PANEL MOUNT HOLDER
Withstands 15 lb.-
in. mounting torque;
maximum panel
thickness: .187”
Withstands 15 lb.-
in. mounting torque;
maximum panel thickness
is .250”
Molded Parts Black thermoplastic
(UL94 V-0)
Black thermoset
(UL94 V-0)
Seal
Neoprene washer provide
drip-proof protection on
the front side of the panel
(upon request)
O-ring provides a
watertight seal on the
front side of the panel per
MIL-PRF-19207
Terminals
Copper & copper alloy.
Tin plated, except
¼” Quick-Connect
terminals are nickel plated
Copper & copper alloy.
Tin plated
Hardware Comes with a mounting
nut and neoprene washer
O-rings (2) and hex nut,
unassembled
Ingression
Protection
Rating
IP40 IP67
