$1,681.46 per piece

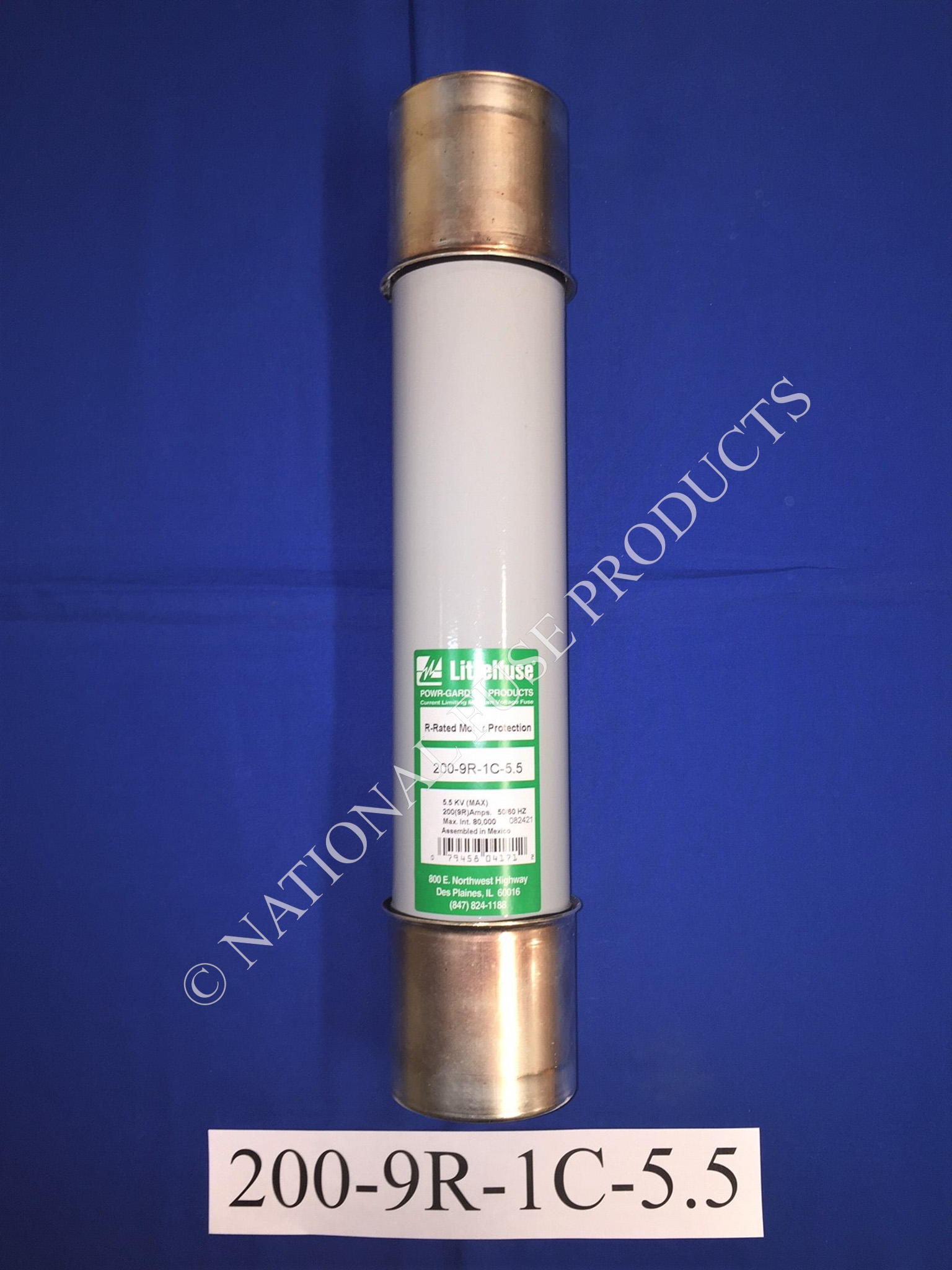

200-9R-1C-5.5

Brand / Manufacturer: LITTELFUSE ELECTRICAL FUSES

Amperage Rating: 200

Voltage: 5500

UPC: 079458041712

Department: 24

Series: R

Catalog Number: 200-9R-1C-5.5

Catalog / Class: Medium Voltage

Speed: Fast Acting

SKU: 200-9R-1C-5.5

Categories: , , ,

*Prices Subject to Change

Description

200A 5.5 MED VOLT

  • 200 Amps
  • 5,500 Volts
  • R-rated medium voltage Powr-GardĀ® fuse
  • Current-limiting; fast acting
  • Bolt-in mount
  • 1 barrel
  • Rating size 9R
  • 3″ diameter
  • 14″ clip center

The LittelfuseĀ® 200-9R-1C-5.5 fuse offers protection of transformers, feeders, and motor circuits. This is a single barrel design to cover a wide range of current, voltage, and interrupting ratings. Current limiting R-rated fuses are equipped with a mechanical indicator or striker pin that protrudes through the fuse cap upon operation of the fuse. This provides visual identification of a blown fuse and can be used as a trigger for external devices.

Littelfuse Powr-Gard Medium Voltage Fuse Datasheet
