Description

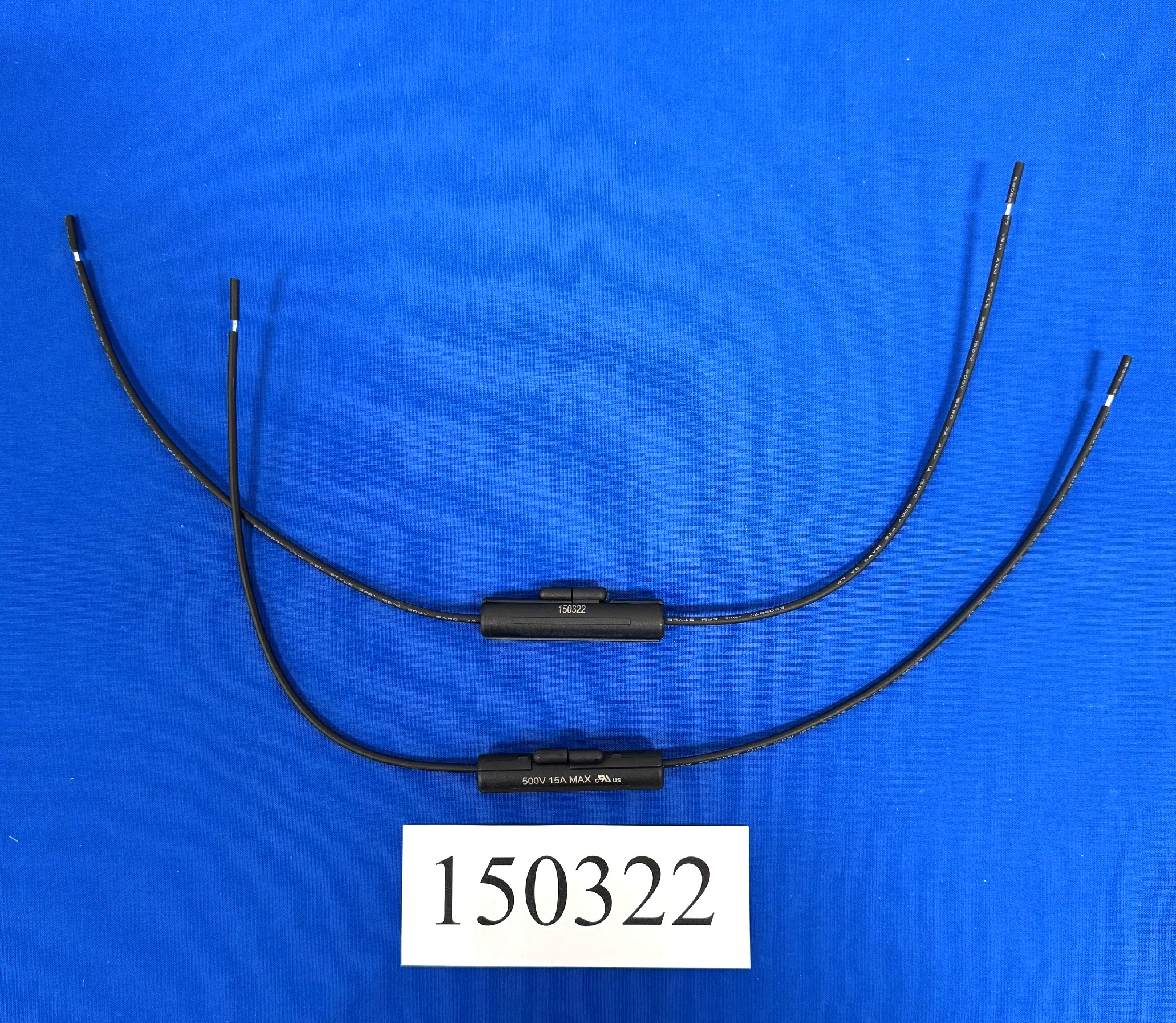

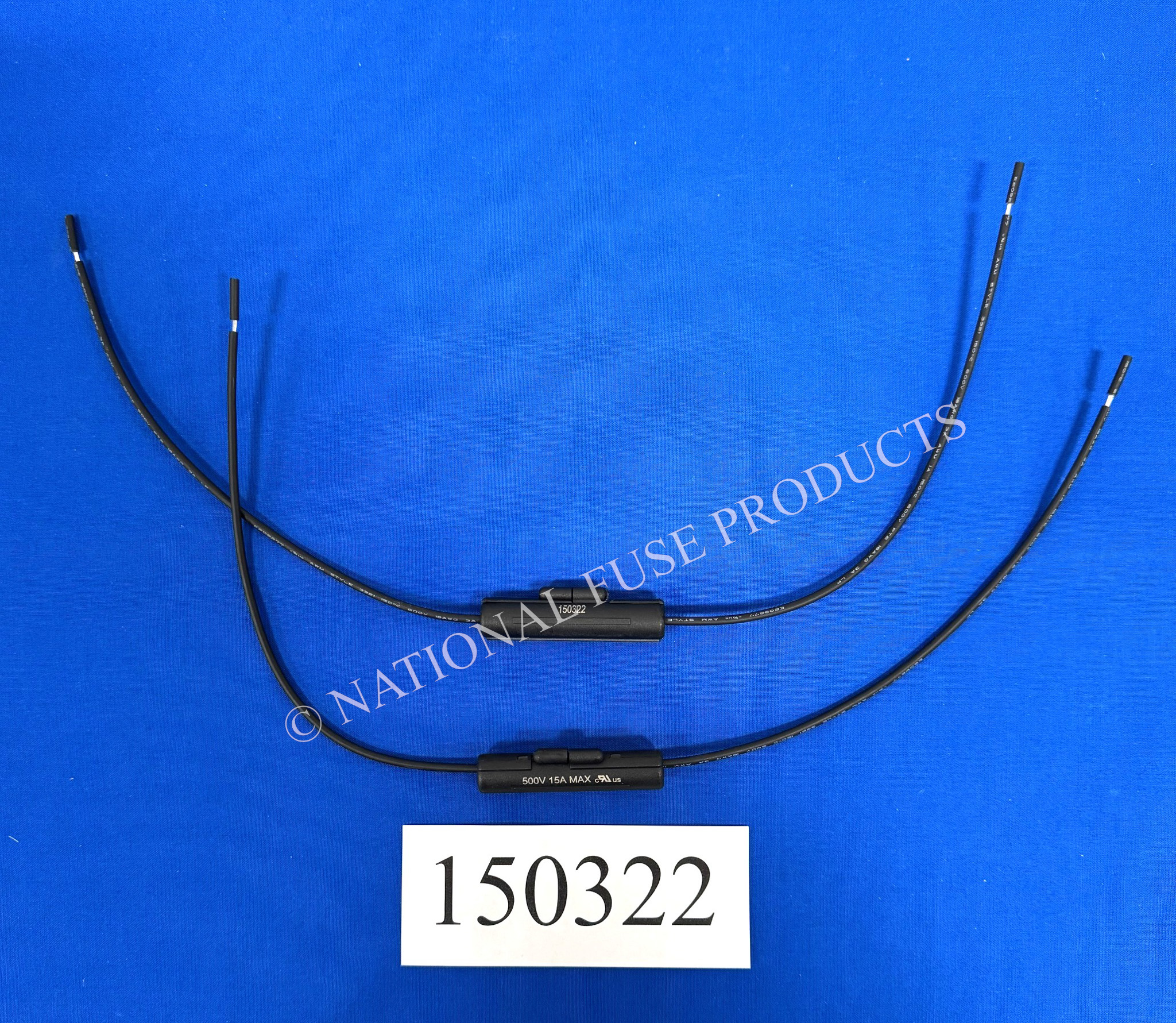

15A 500V 6X32 INLINE FUSE HOLDER
The Littelfuse 150322 inline fuse holder is designed for use with 6.3x32mm (.25″x1.25″) Fuses. Provides an economical inline fuse holder solution.
Description
The 150312 & 150322 are 500 VAC/VDC rated inline fuseholder
ideal for applications where supplemental protection is needed,
such as lighting ballasts and power supplies. 8-inch pre-stripped
wire leads and fuse clips come preassembled for quick installation.
Features/Benefits
Dimensions in mm (inches)
Note: Refer to Fuseology for information on proper fuseholder re-rating.
Disclaimer Notice – Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are
not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at: www.littelfuse.com/disclaimer-electronics.
■ High voltage rating
accomodates many power
applications
■ Wire leads are pre-attached
to fuse clips for quick
assembly
■ Single piece molded body
■ UL Recognized to UL/CSA
4248.1
