$60.98 per piece


Brand / Manufacturer: ALTECH

Amperage Rating: 100

Voltage: 660

Department: 30

Series: NH1

Catalog / Class: GR

Speed: Semiconductor

SKU: 100NH1GR-6


*Prices Subject to Change

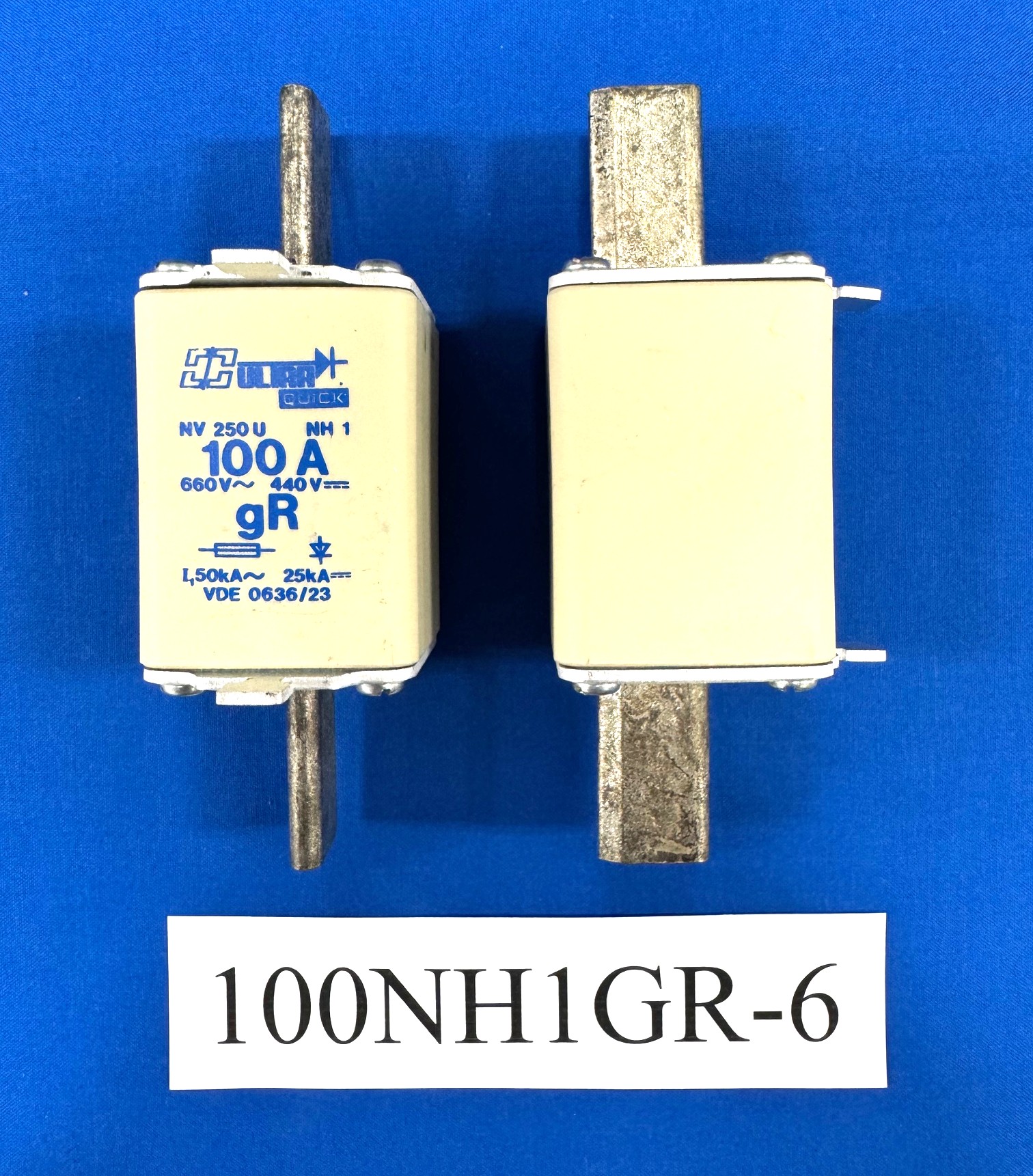

100A 660V NH1 GR

  • 100 Amps
  • 660 Volts
  • Class gR
  • Ceramic casing
  • Breaking capacity 120kA (AC)
  • RoHS compliant
  • Very fast acting
  • 05 x 1.1 x 1.67 inches

The Altech 100NH1GR fuse is part of the Altech NH1 series.  NH fuses (class gR) are typically used for semiconductor protection offering full range overload and short circuit protection. NH fuses have knife blades at both ends, which mount into fuse bases. NH fuses are one-time fuses, meaning once they have blown, they must be replaced with a new fuse with the same characteristics.
NH fuses are constructed from a rectangular ceramic casing enclosed by a cover plate that features a metal blade style terminal on each end. The fuse element inside the casing is connected to the cover plate/blade terminals.
Altech/ETI NH Series Datasheet
